Door Module
>>
LH Door Mirror Control
LH Door Mirror Control

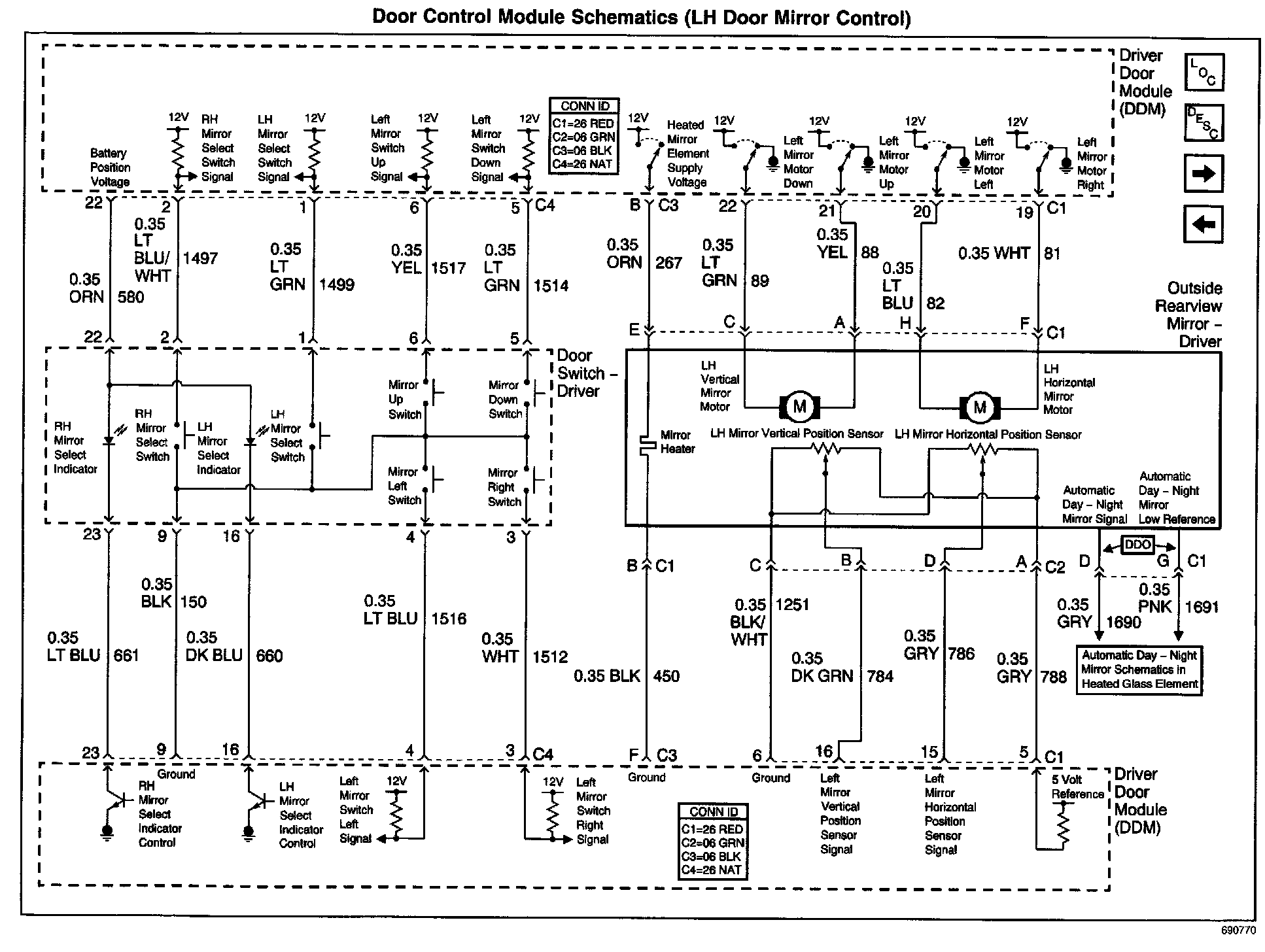

Door Control Module Schematics: LH Door Mirror Control:
