Headlamp
>>
Headlamp Control Module
>>

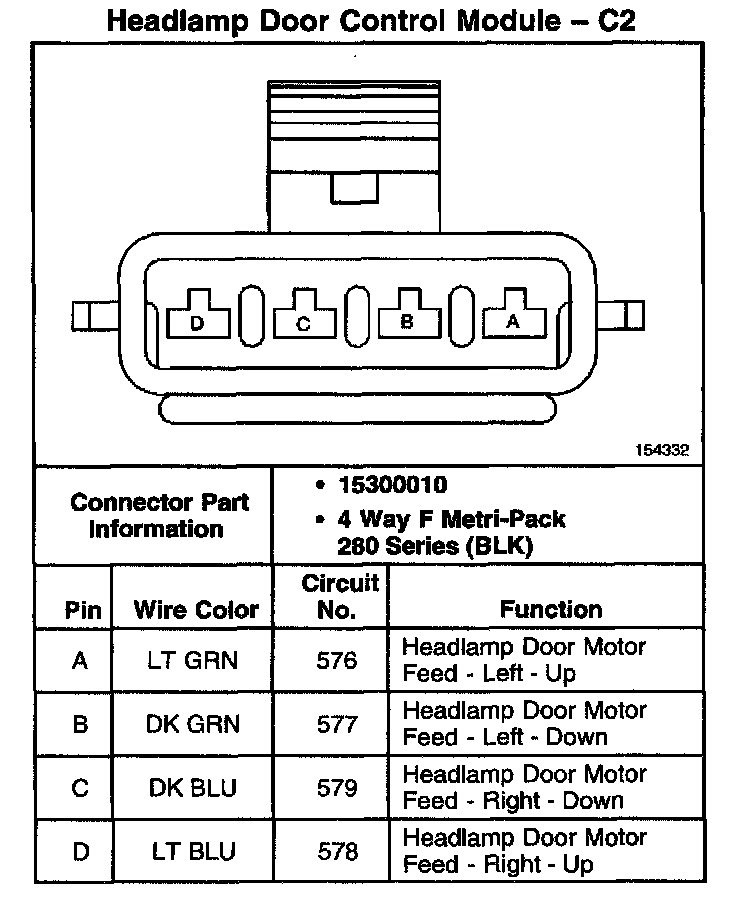

Headlamp Door Control Module - C2
Headlamp Door Control Module - C2
Headlamp Door Control Module - C2:
