Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Switch
>>

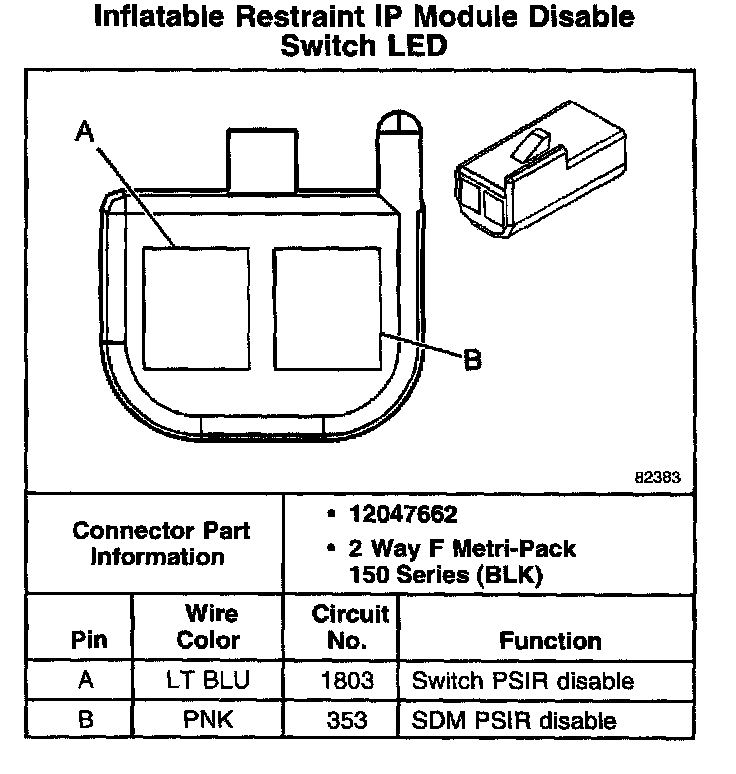

Inflatable Restraint IP Module Disable Switch LED
Inflatable Restraint IP Module Disable Switch LED
Inflatable Restraint IP Module Disable Switch LED:
