Home
>>
Chevrolet
>>
2001
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Switch
>>
Inflatable Restraint IP Module Disable Switch
Inflatable Restraint IP Module Disable Switch

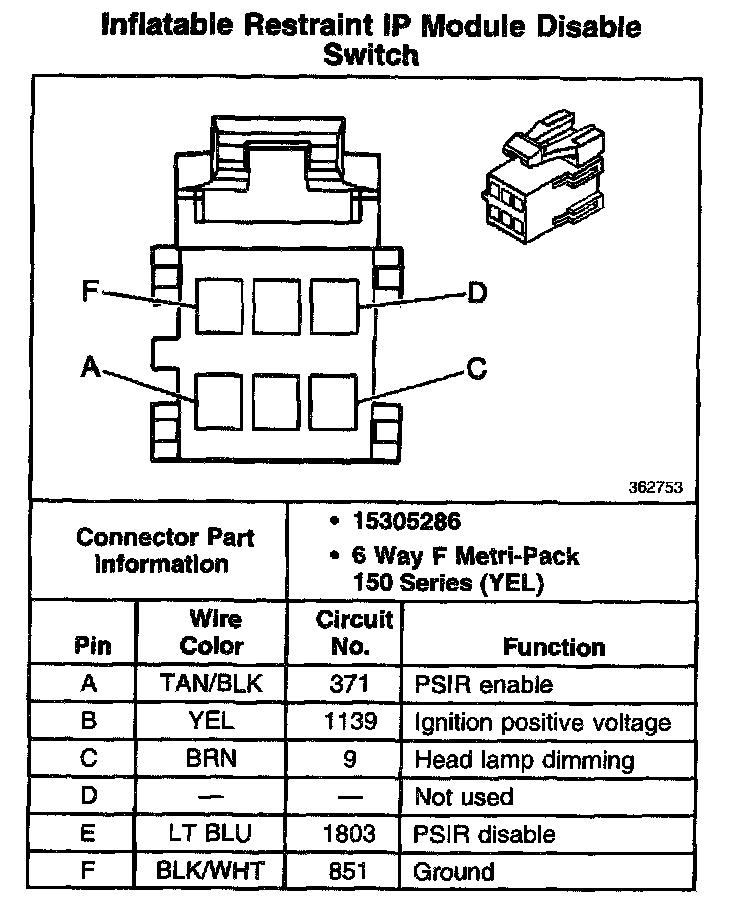

Inflatable Restraint IP Module Disable Switch:
