Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics

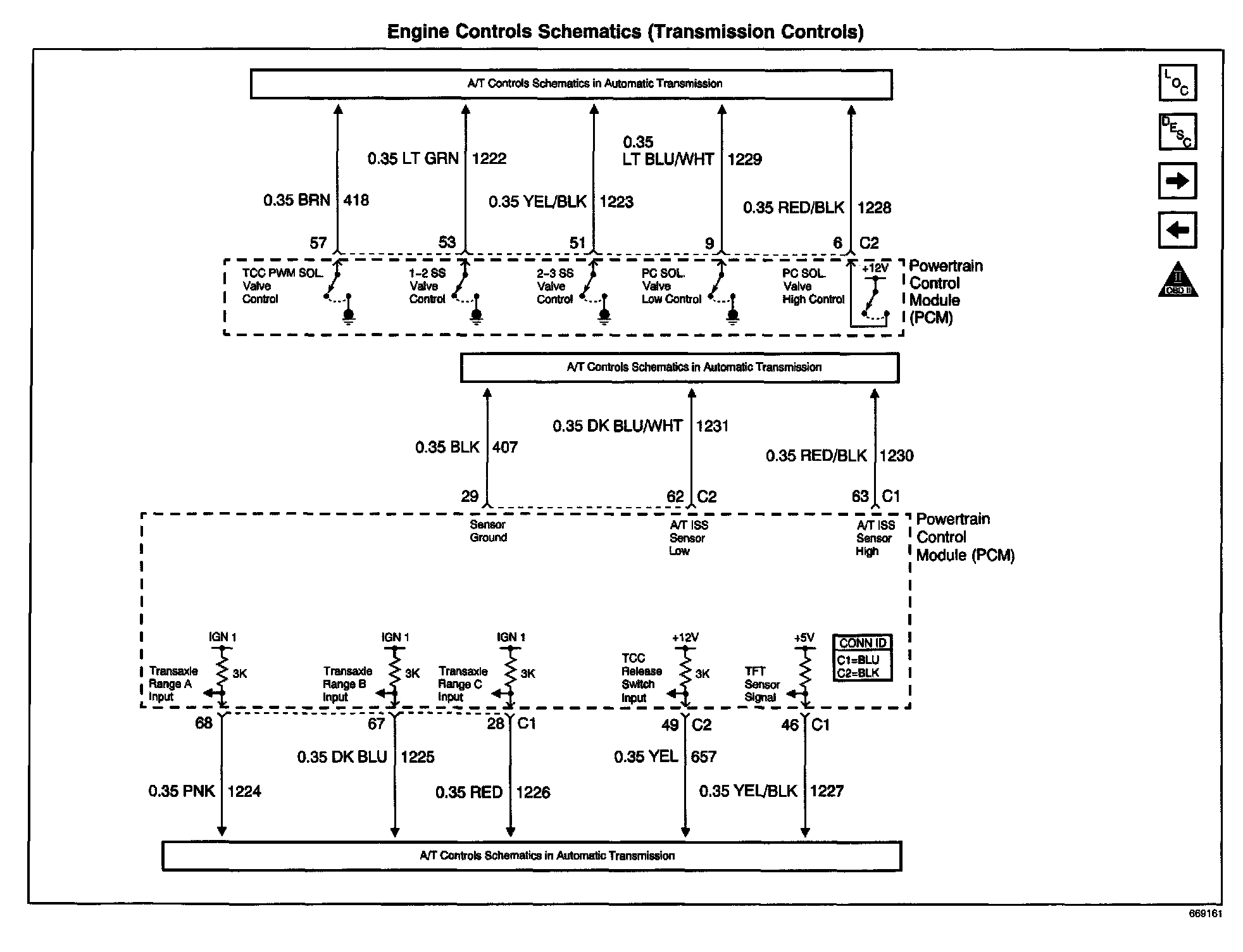

Engine Controls Schematics: Transmission Controls:
