Chevrolet
>>
2001
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

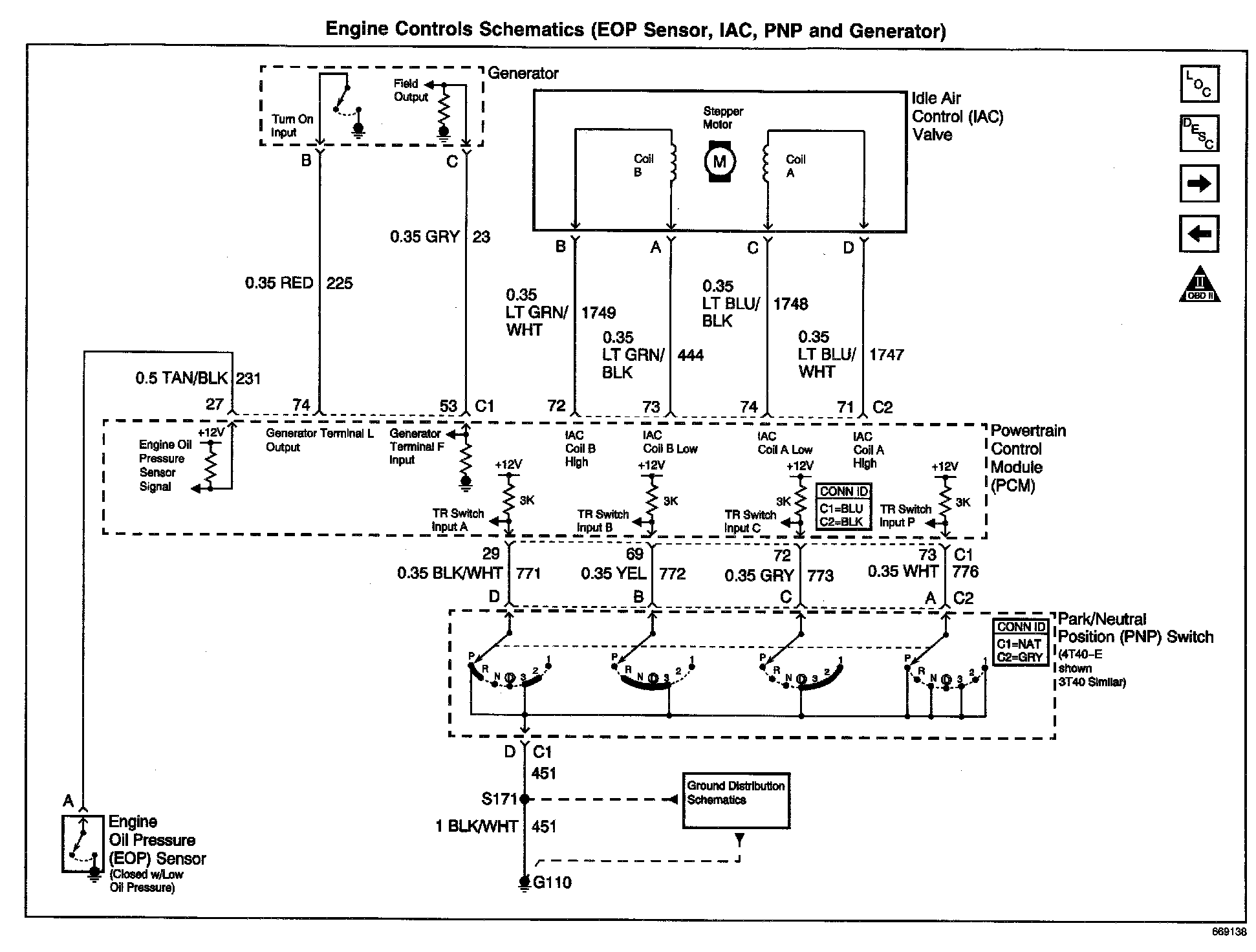

Engine Controls Schematics: EOP Sensor, IAC, PNP And Generator:
