Battery, Generator and Powertrain Control Module
Battery, Generator and Powertrain Control Module

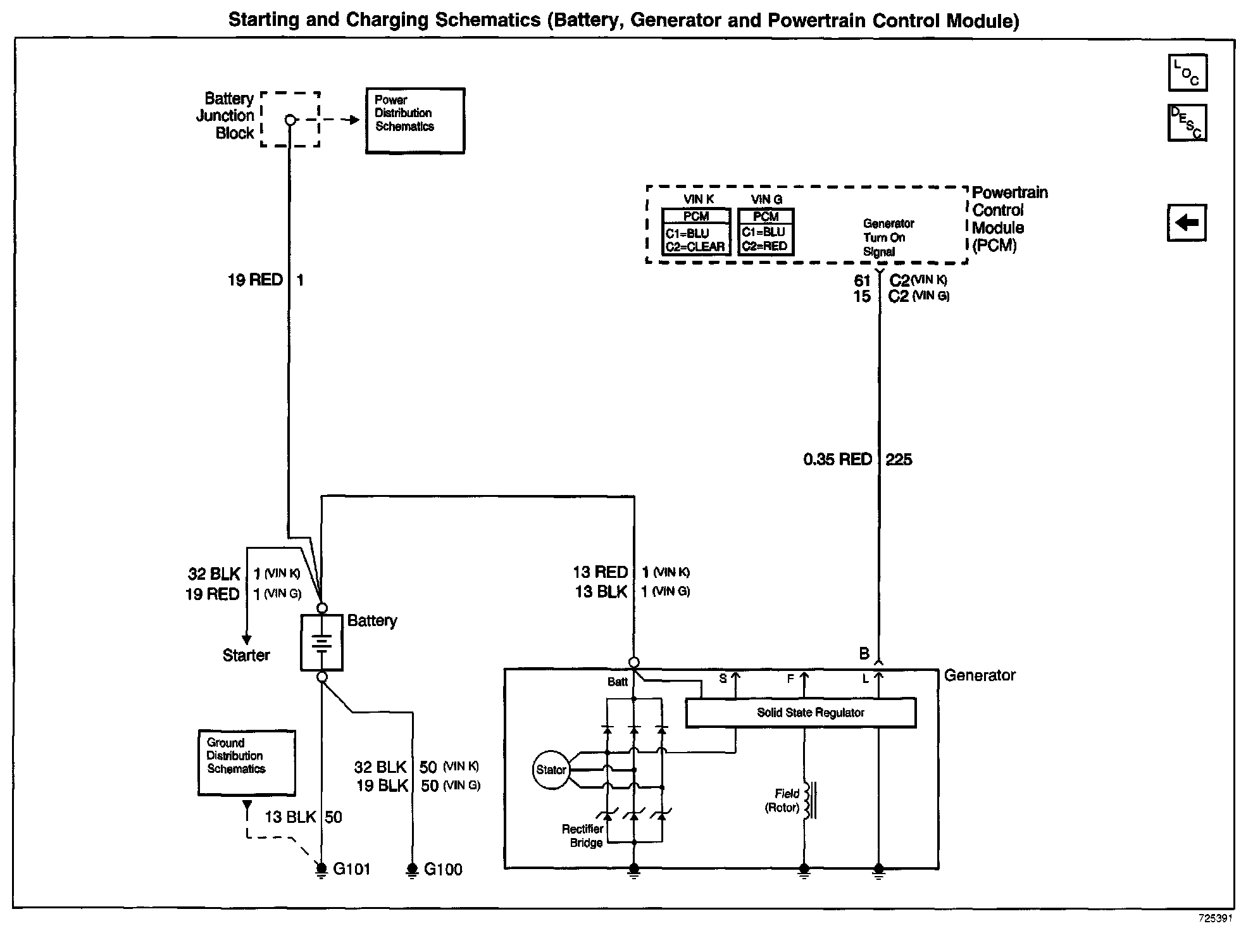

Starting And Charging Schematics: Battery, Generator And Powertrain Control Module:
