Headlamp Dimmer Switch, Headlamp Relay, Parklamp Relay
Headlamp Dimmer Switch, Headlamp Relay, Parklamp Relay

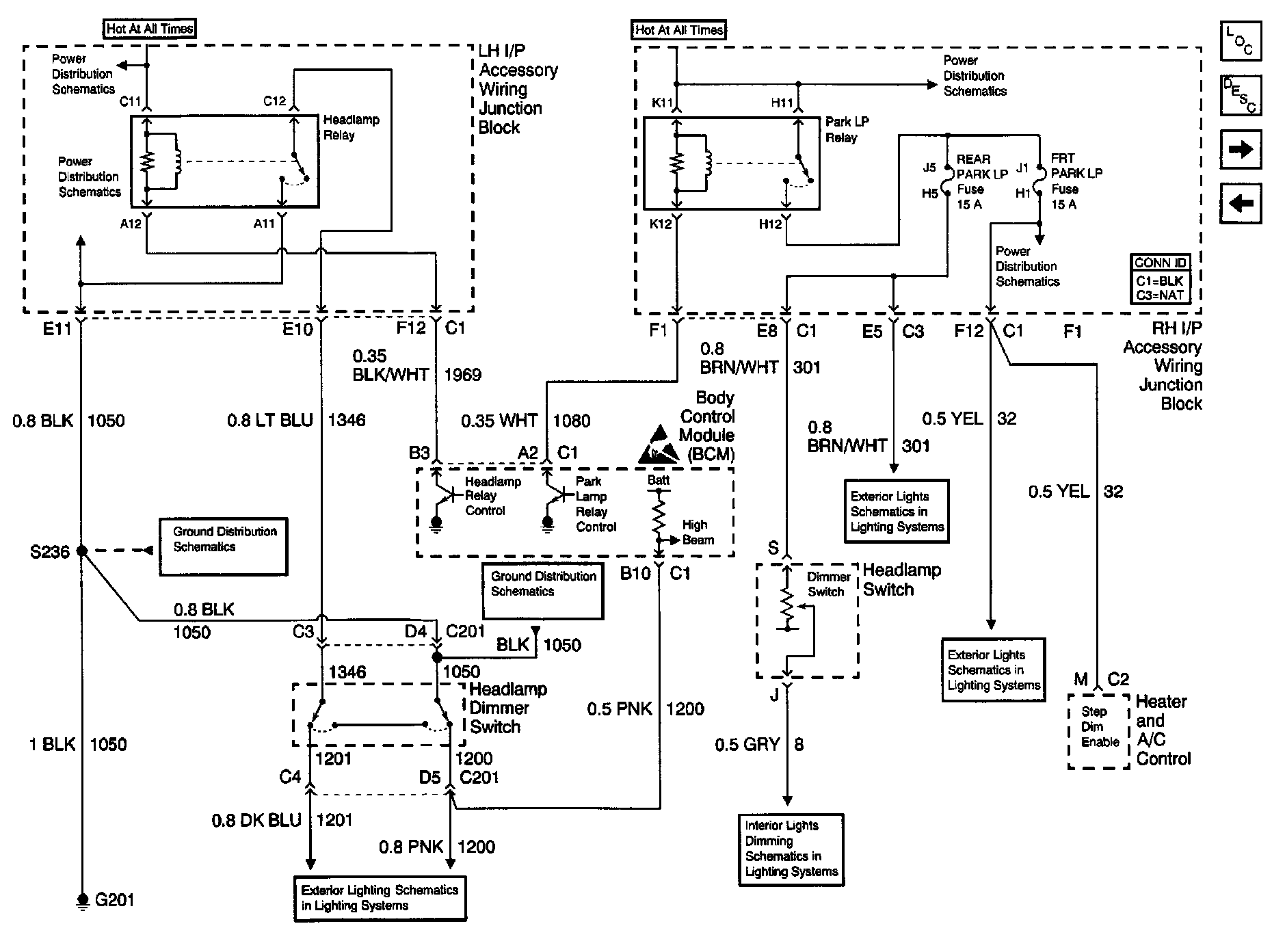

Body Control Module Schematics: Headlamp Dimmer Switch, Headlamp Relay, Parklamp Relay:
