Manifold Pressure/Vacuum Sensor
>>
Diagrams
>>
Connector Views
Connector Views

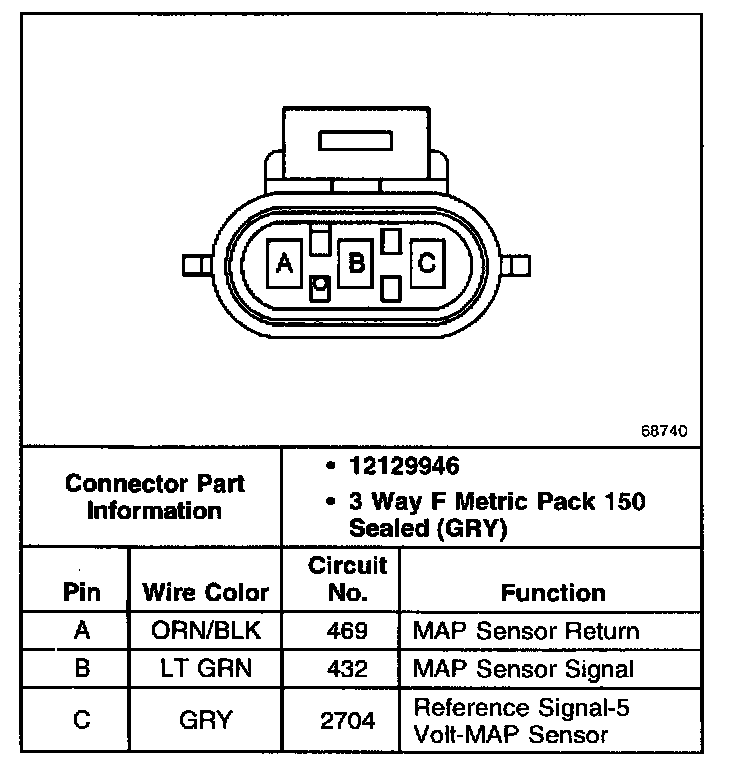

Manifold Air Pressure (MAP) Sensor:
