LH Seat Control Module (SCM) C3 (Telescopic and Memory)
LH Seat Control Module (SCM) C3 (Telescopic and Memory)

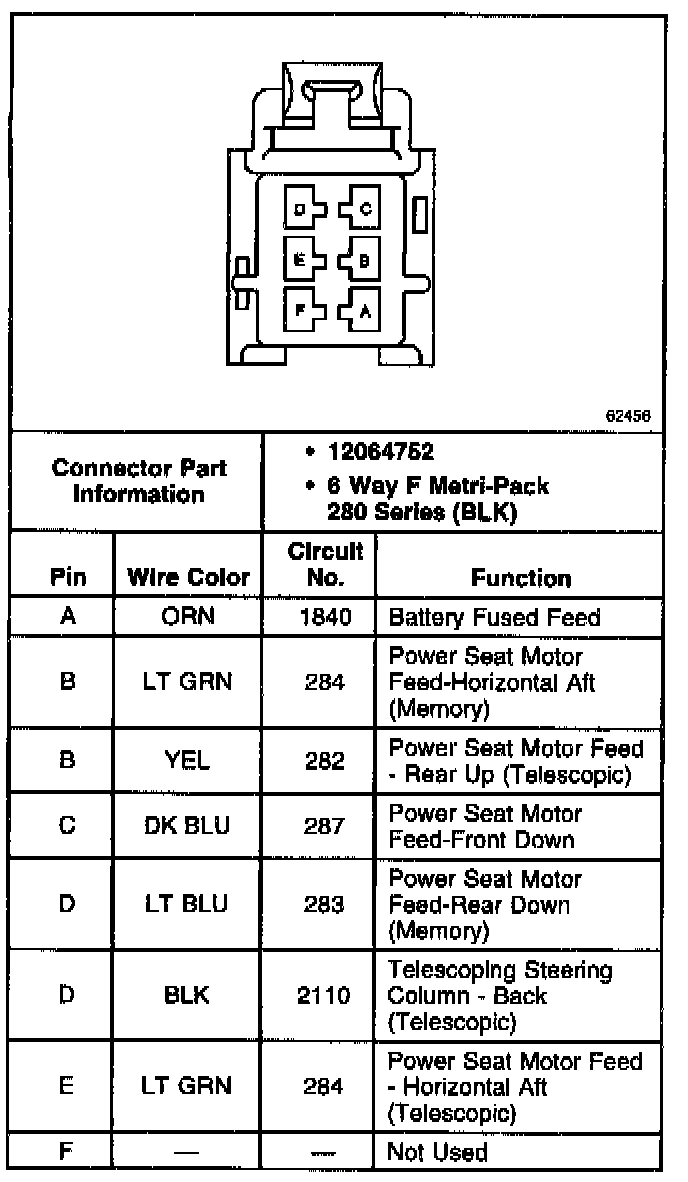

LH Seat Control Module (SCM) C3 (Telescopic And Memory):
