LH Seat Control Module (SCM) C2 (Telescopic and Memory)
LH Seat Control Module (SCM) C2 (Telescopic and Memory)

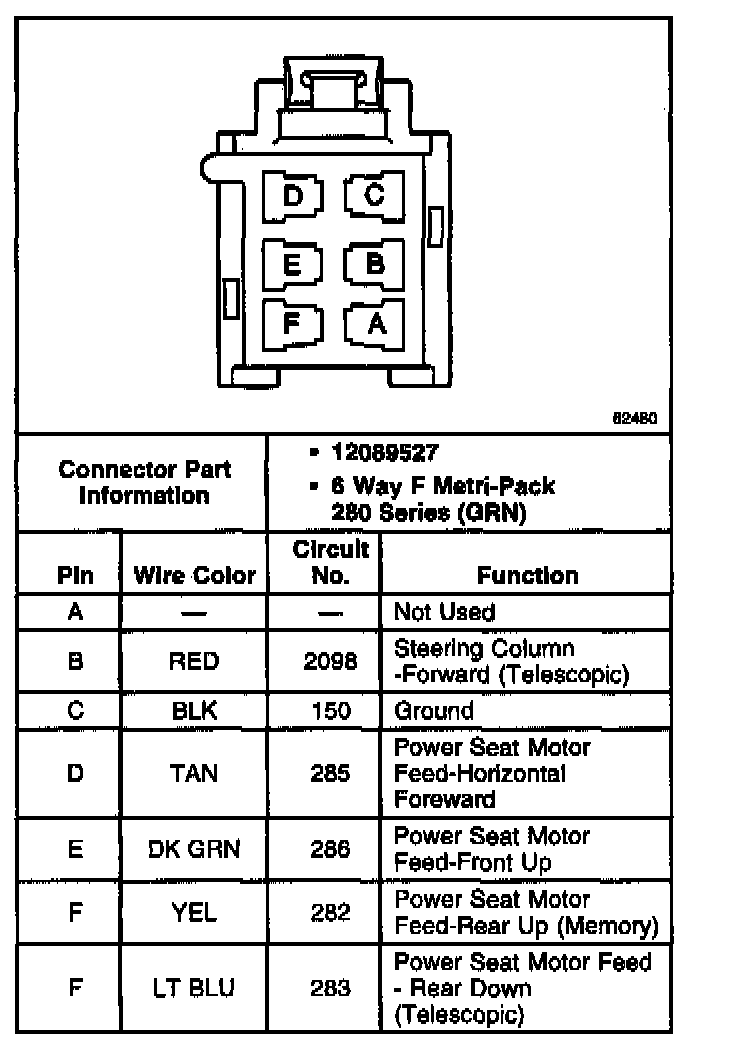

LH Seat Control Module (SCM) C2 (Telescopic And Memory):
