Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Device Controls
Device Controls

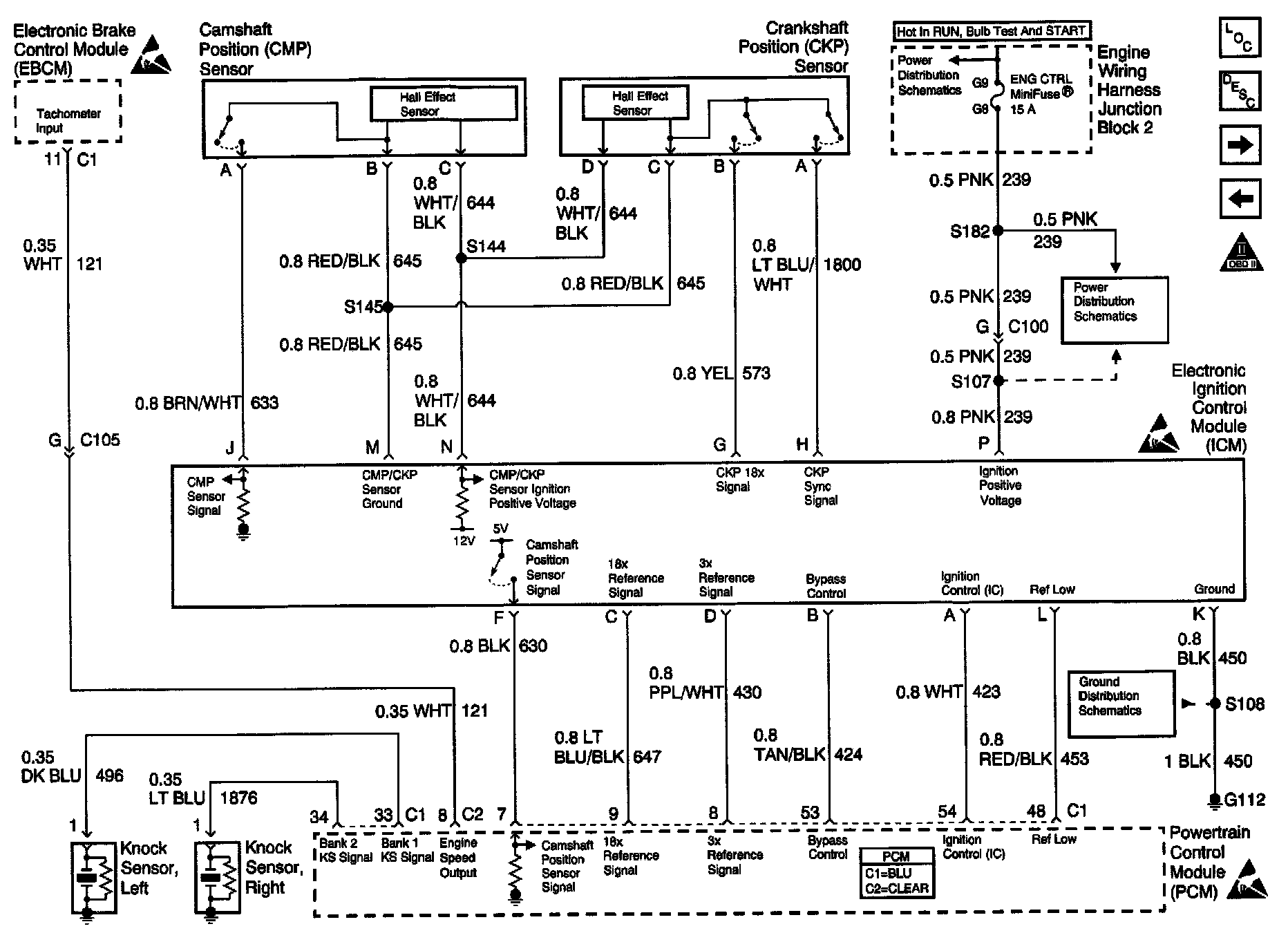

Engine Controls Schematics: Ignition Controls, Knock Sensors:
