Body Control Module and Switch Inputs
Body Control Module and Switch Inputs

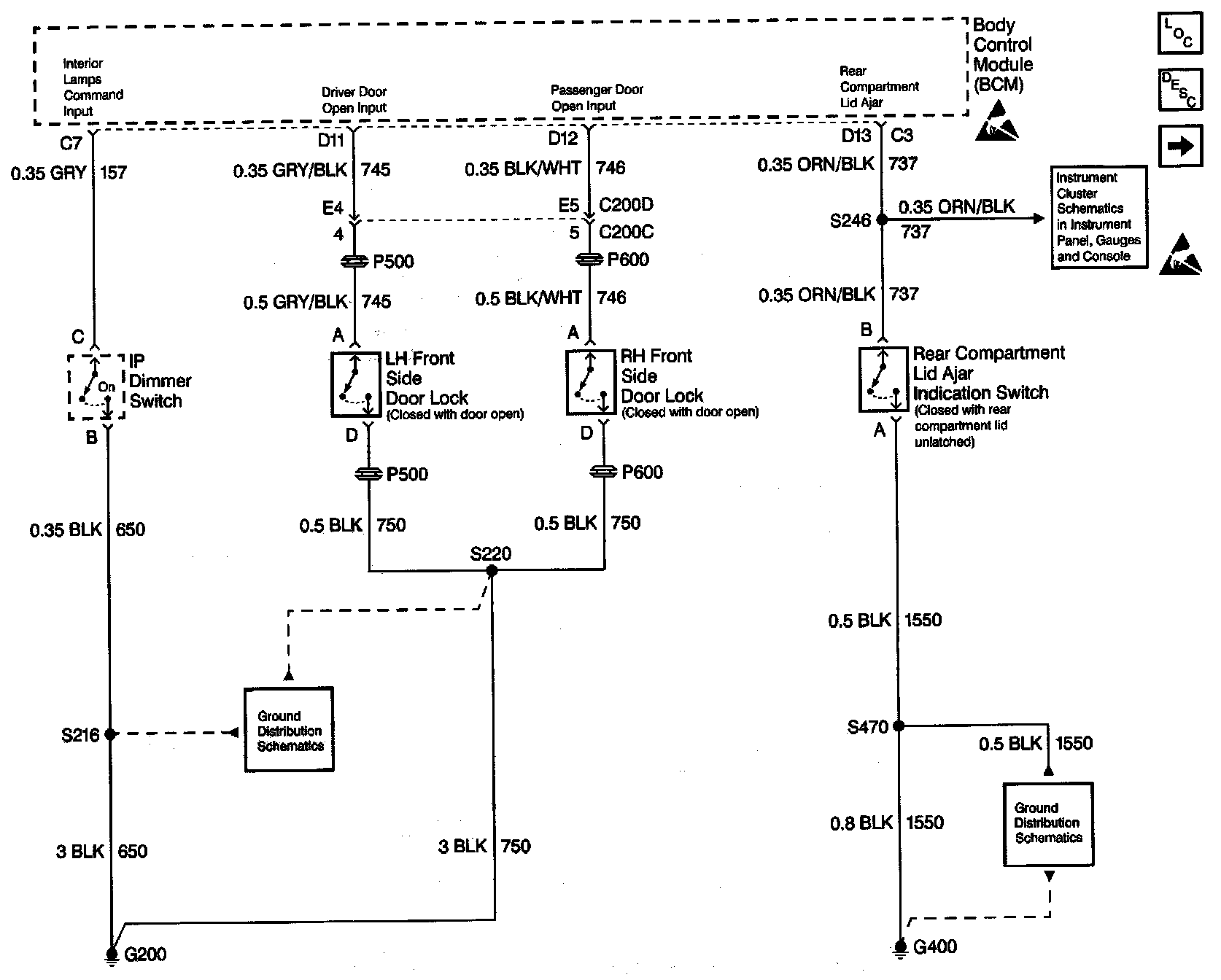

Interior Lights Schematics: Body Control Module And Switch Inputs:
