Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Theft Deterrent System Schematics
>>
Body Control Module and Horn Relay
Body Control Module and Horn Relay

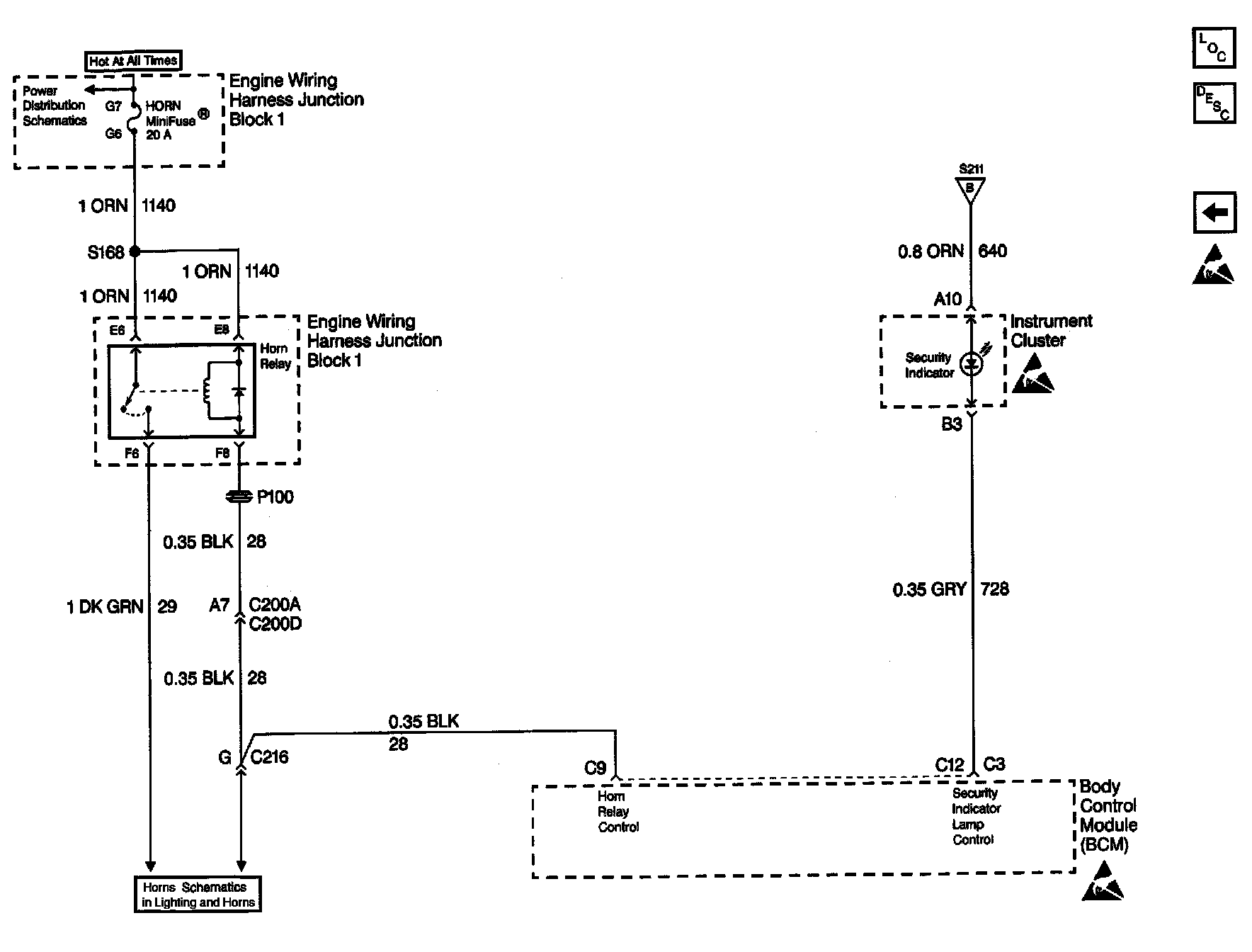

Theft Deterrent System Schematics: Body Control Module And Horn Relay:
