Home
>>
Chevrolet
>>
2000
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Module Inputs and Outputs
Body Control Module Inputs and Outputs

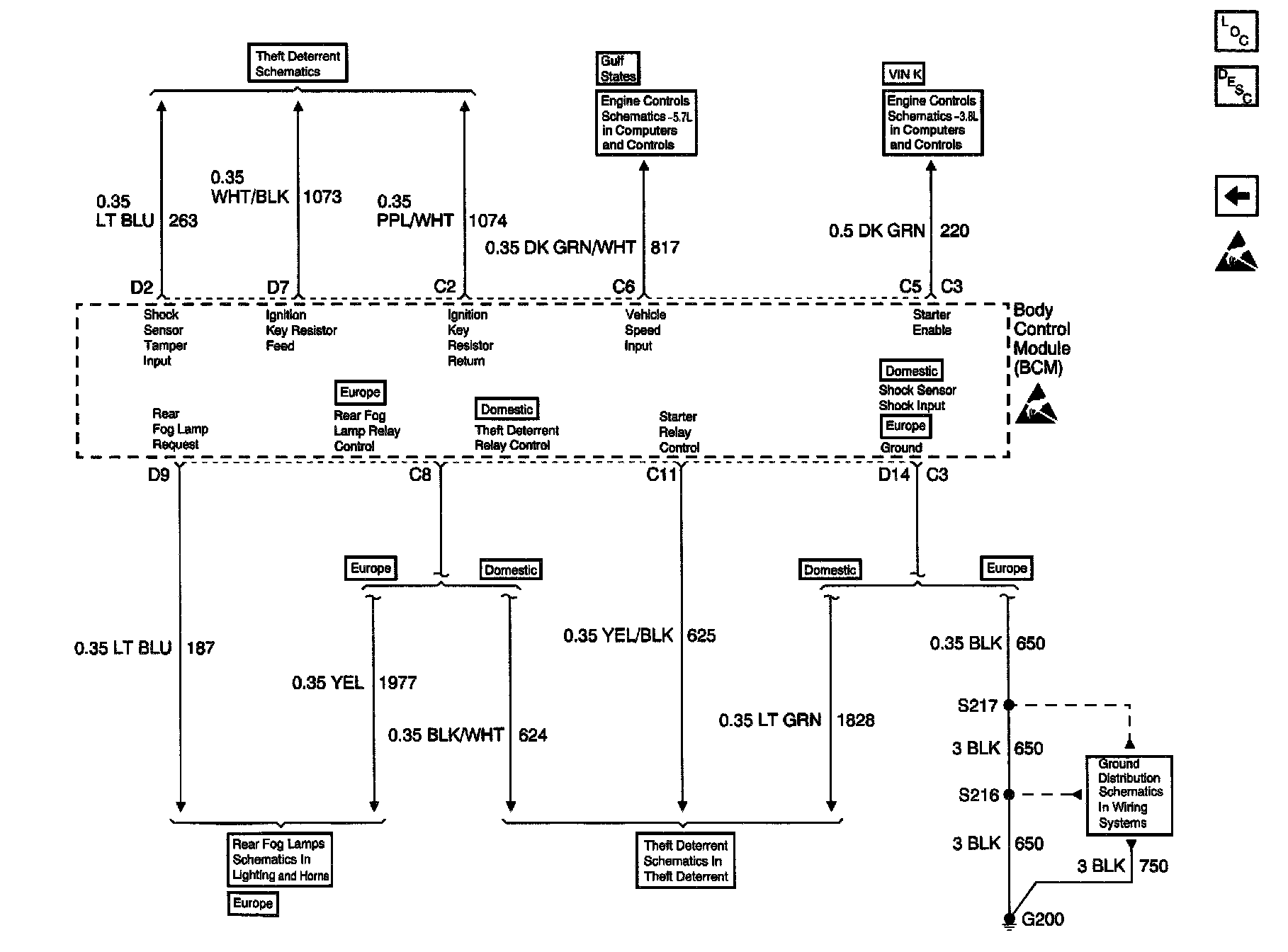

Body Control Module Schematics: Body Control Module System Inputs And Outputs:
