Power Window and Door Lock Switch Replacement (Left Front Door)

REMOVAL PROCEDURE

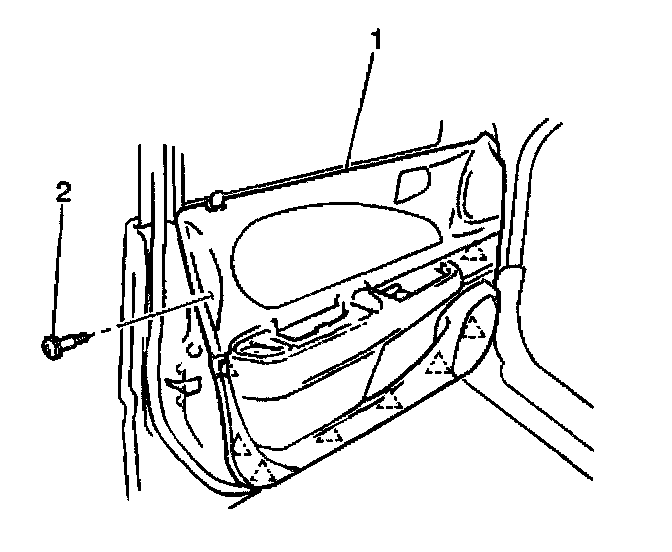

1. Using a taped flat bladed tool, gently pry the front side door accessory switch mounting plate from the front side door trim (1).
2. Disconnect the front side door window/lock switch electrical connector.
3. Remove the following components from the front side door window/lock switch:
^ The 3 screws
^ The front side door accessory switch mounting plate

INSTALLATION PROCEDURE
1. Install the front side door window/lock switch to the front side door accessory switch mounting plate. Secure the switch with the 3 screws.
2. Connect the front side door window/lock switch electrical connector.
3. Install the front side door accessory switch mounting plate to the front side door trim (1).
