Restraint System - Warning Lamp Flashing/DTC 48 Stored

SIR Telltale Light Illuminating/Flashing, Code 48
Stored (Replace Wiring Harness) # 00-09-41-005
- (11/29/2000)

1998-2001 Chevrolet Prizm

Condition

Some customers may comment that the SIR Telltale Light is illuminated, flashing or comes on intermittently.

Cause

This condition may be caused by high terminal/wiring harness resistance.

Correction
Check for stored codes. If the codes are for high resistance detected by the Sensing & Diagnostic Module (SDM) for the side air bags and/or the pretensioners, install a new floor wiring harness. To install the new floor wiring harness will require removal of the seats, console, carpet, body control module and various interior moldings/trim.





Parts Information

Parts are currently available from GMSPO.

Warranty Information

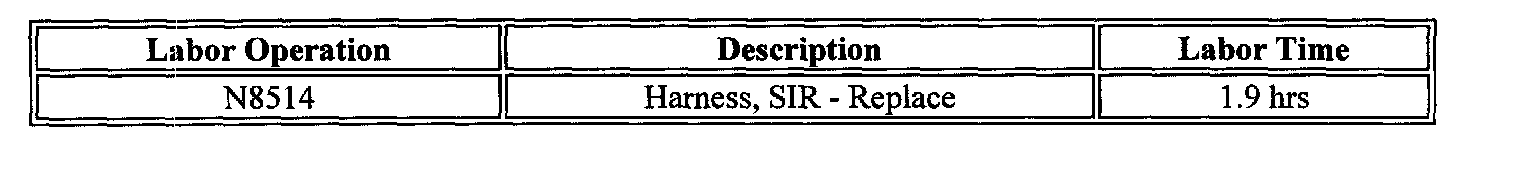

For vehicles repaired under warranty, use the table.
