Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

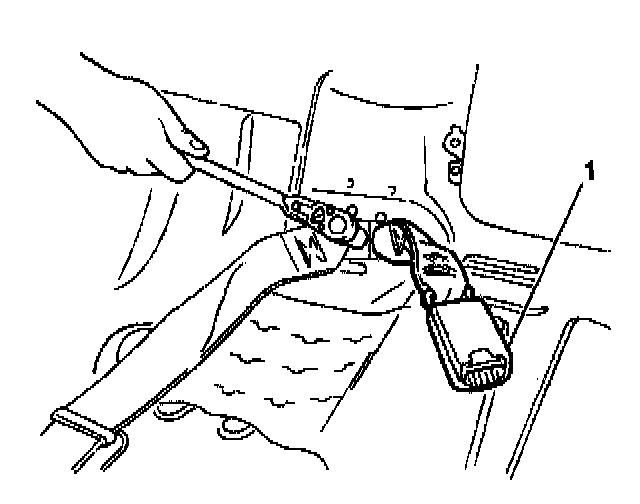

1. Install the rear seat belt buckle (1) to the vehicle. Secure the buckle with the anchor bolt.

Tighten
Tighten the rear seat belt buckle anchor bolt to 42 N.m (31 lb ft).

2. Install the rear seat cushion.
