Front End Discriminating Sensor Replacement
>>
Removal Procedure
>>
RH
RH
1.
Disable the SIR system.
2.
Remove the RH front turn signal lamp.
3.
Remove the RH headlamp.
4.

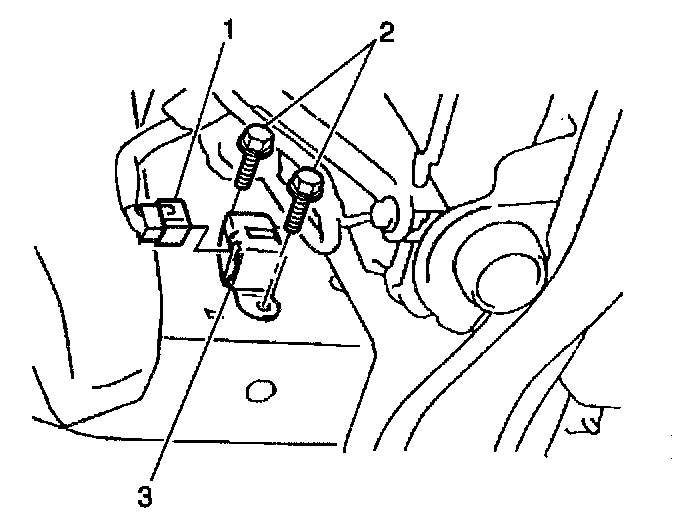

Remove the electrical connector (1).
5.
Remove the fasteners (2).
6.
Remove the Front End Discriminating Sensor (3).
