Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Service and Repair
>>
Front End Discriminating Sensor Replacement
>>
Removal Procedure
>>
LH
LH
1.
Disable the SIR system.
2.
Remove the LH front engine splash shield.
3.

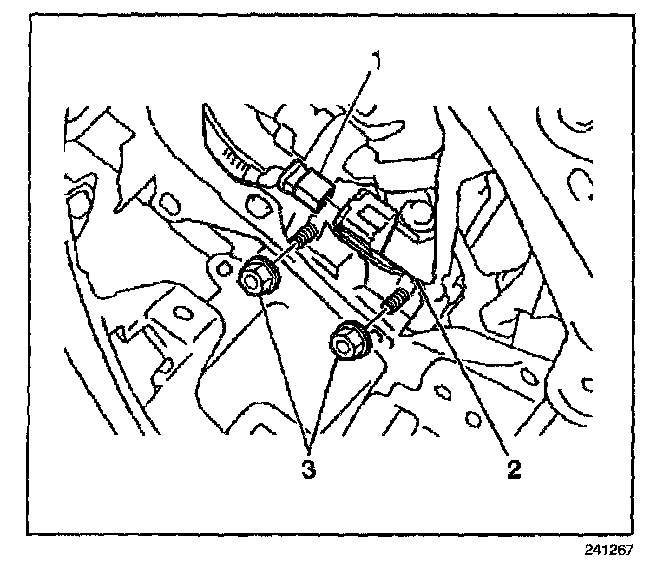

Remove the electrical connector (1).
4.
Remove the fasteners (3).
5.
Remove the Front End Discriminating Sensor (2).
