Radiator Cooling Fan Motor Relay: Service and Repair

Removal Procedure





1. Remove the cover from fuse and relay block 1.

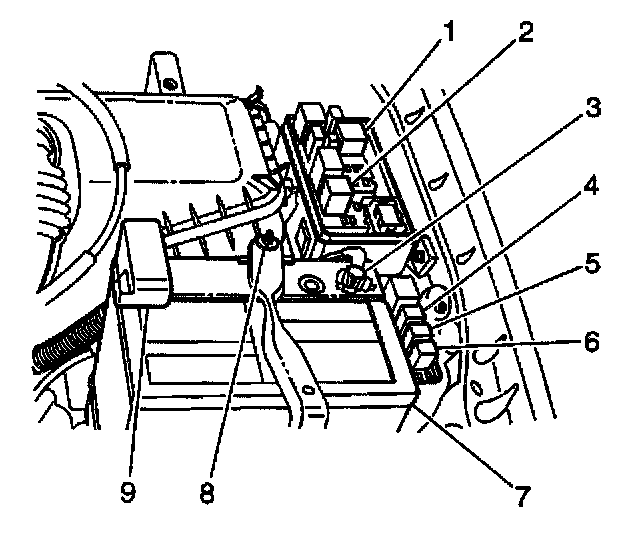

2. Remove the fan no. 1 relay (1) or the engine main relay from fuse and relay block 1.

Installation Procedure





1. Install the fan no. 1 relay (1) relay or the engine main relay in fuse and relay block 1.
2. Install the cover to fuse and relay block 1.
