Fuse and Relay Block 1

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.
2. Remove the air cleaner assembly.

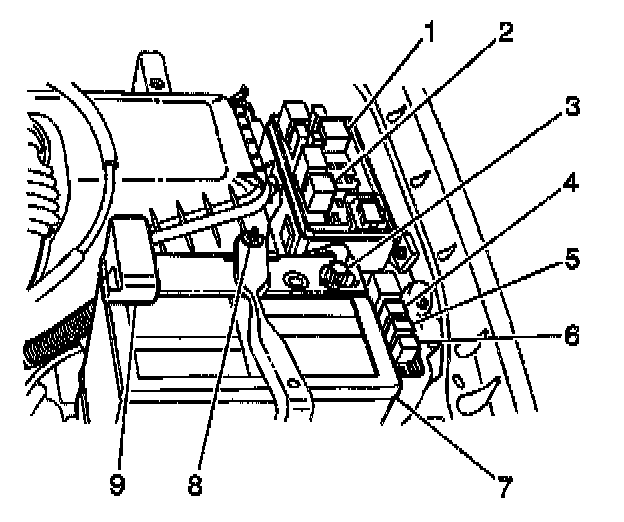

3. Remove the 2 bolts that hold fuse and relay block 1(1) to the inner fender.
4. Carefully pull fuse and relay block 1 away from the inner fender and unsnap the lower cover.
5. Disconnect each of the harness connectors.
6. Remove fuse and relay block 1 from the vehicle.

INSTALLATION PROCEDURE
1. Install fuse and relay block 1(1) to the vehicle.
2. Connect each connector to fuse and relay block 1.
3. Install the lower cover.
4. Install fuse and relay block 1 to the inner fender. Secure with the 2 bolts.
5. Install the air cleaner assembly.
6. Connect the negative battery cable.

Tighten
Tighten the negative battery cable to 15 N.m (11 lb ft).
