Home >> Chevrolet >> 1999 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse and Relay Block 1

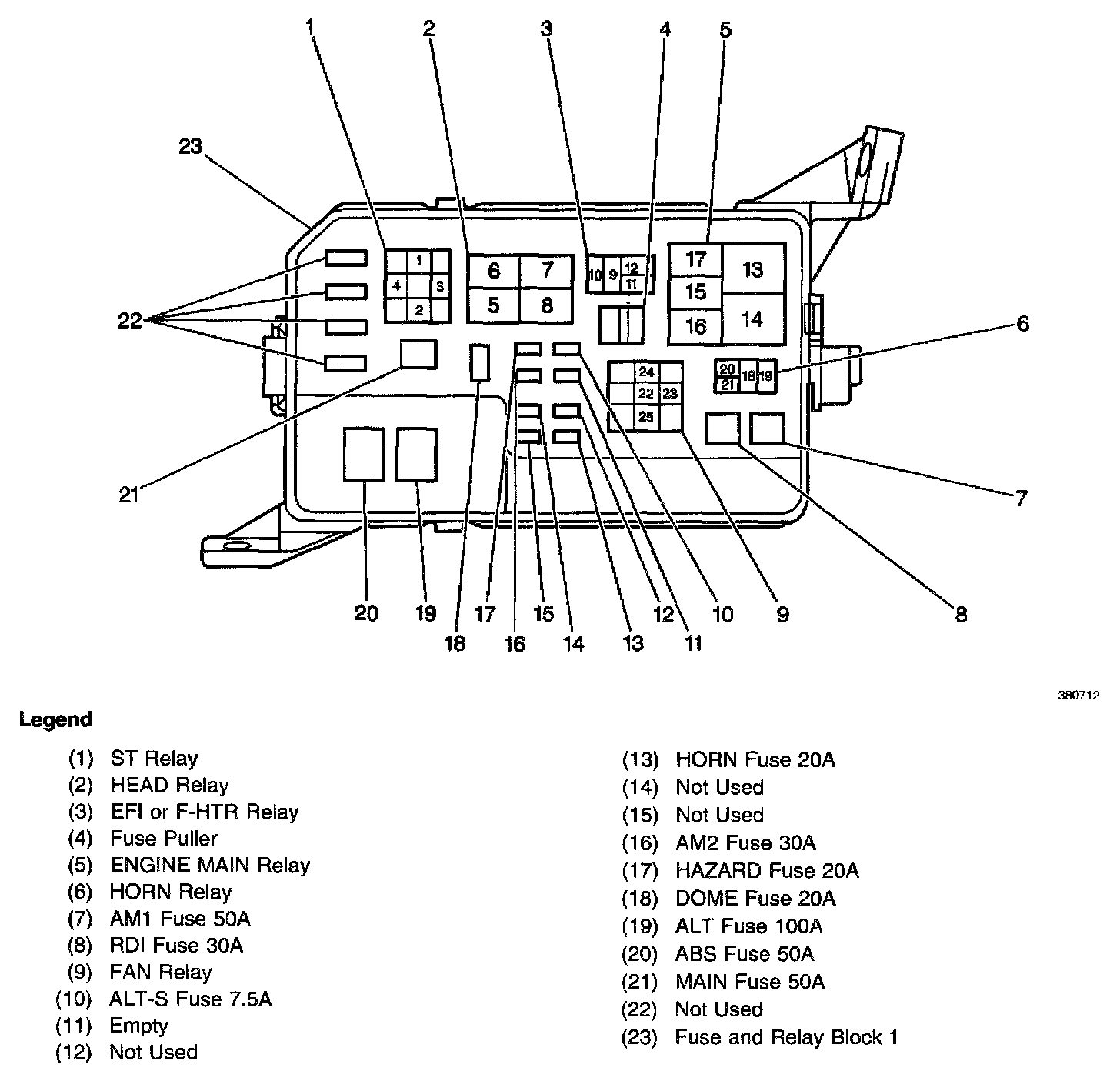

Fuse and Relay Block 1

Fuse And Relay Block 1:
