Headlights Twilight Sentinel/Daytime Running Lights Schematics
>>
Light Switch, Dimmer Switch and DRL Control Module
Light Switch, Dimmer Switch and DRL Control Module

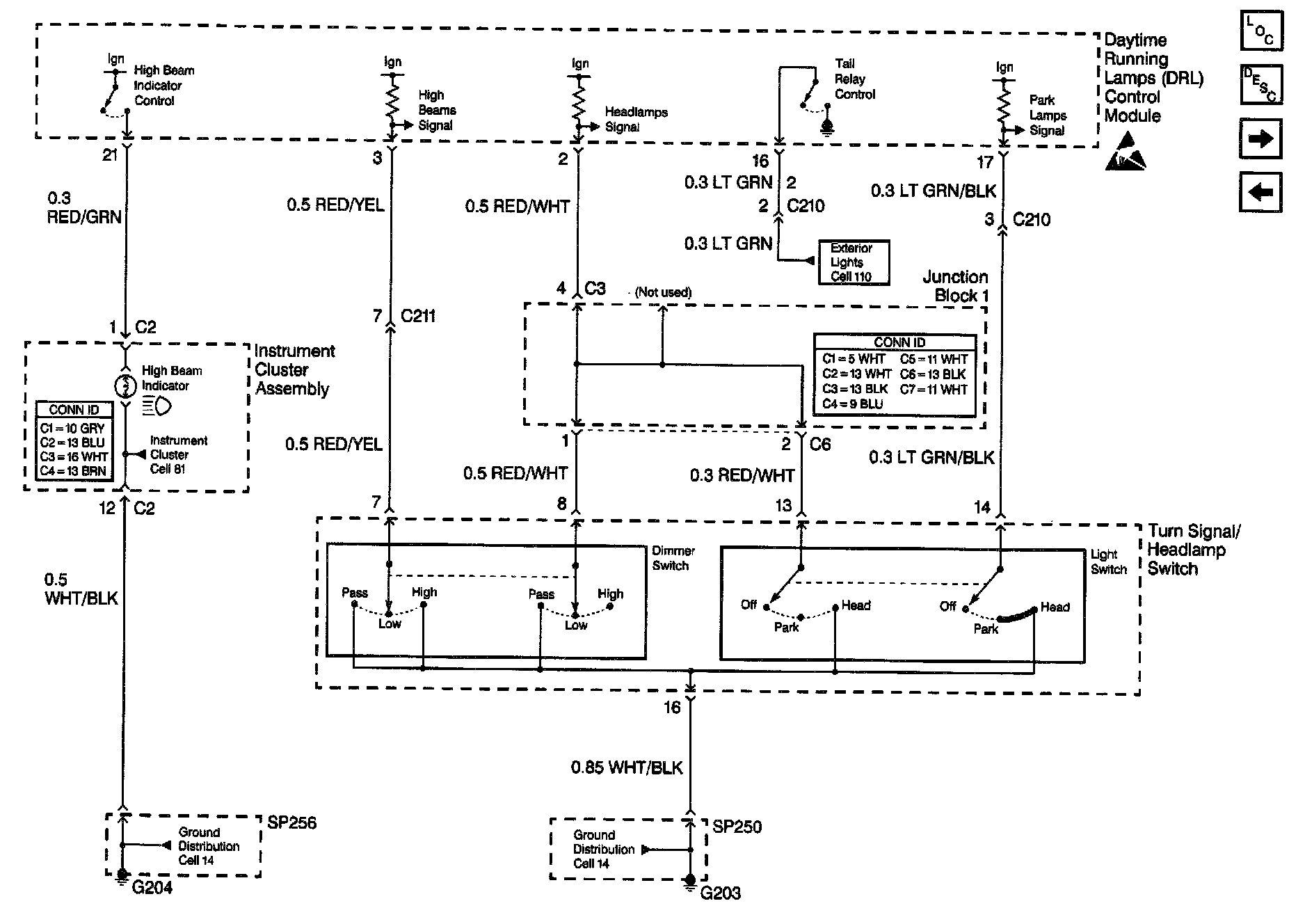

Headlights Twilight Sentinel/DRL Schematics: Light Switch, Dimmer Switch DRL Control Module:
