Condenser Fan Motor Relay: Service and Repair

Condenser Fan Relay Replacement

REMOVAL PROCEDURE
1. Remove the cover from fuse and relay block 2.

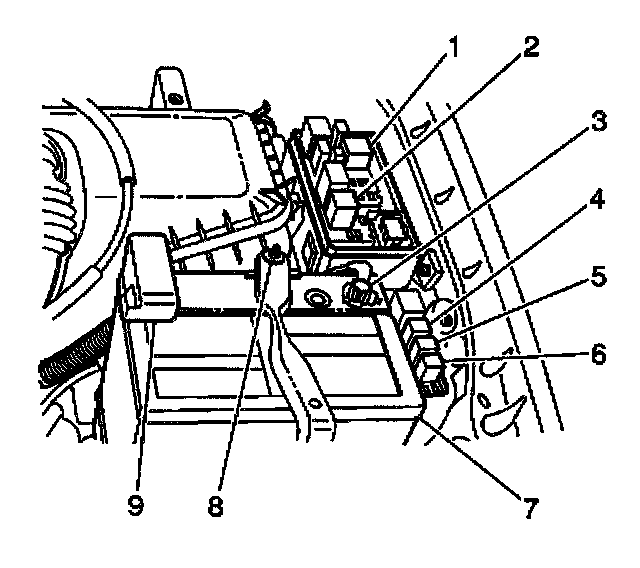

2. Remove the A/C MG relay (6), the A/C fan no.2 relay (4), or the A/C fan no.3 relay (5) from fuse and relay block 2.

INSTALLATION PROCEDURE
1. Install the appropriate relay in fuse and relay block 2.
2. Install the cover to fuse and relay block 2.
