Blower Motor Relay: Service and Repair

Blower Motor Relay Replacement

REMOVAL PROCEDURE

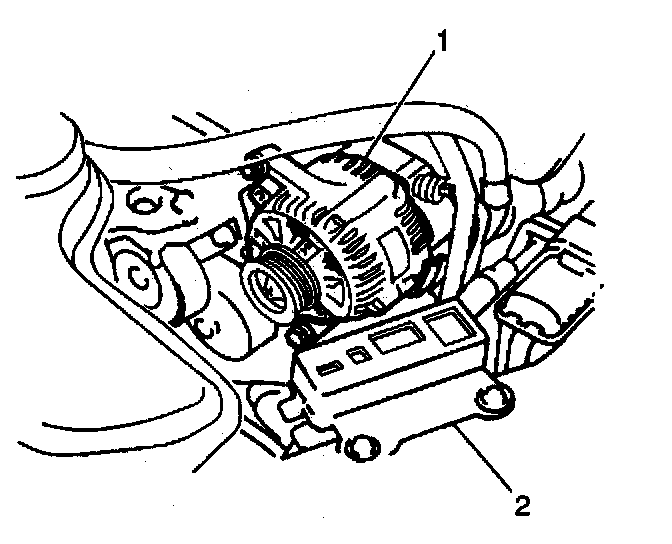

1. Remove the cover from fuse and relay block 3 (2).
2. Remove the heater relay from fuse and relay block 3.

INSTALLATION PROCEDURE
1. Install the heater relay to fuse and relay block 3 (2).
2. Install the cover to fuse and relay block 3.
