Left

Air Outlet Replacement-Instrument Panel

REMOVAL PROCEDURE
1. Remove the knee bolster reinforcement.

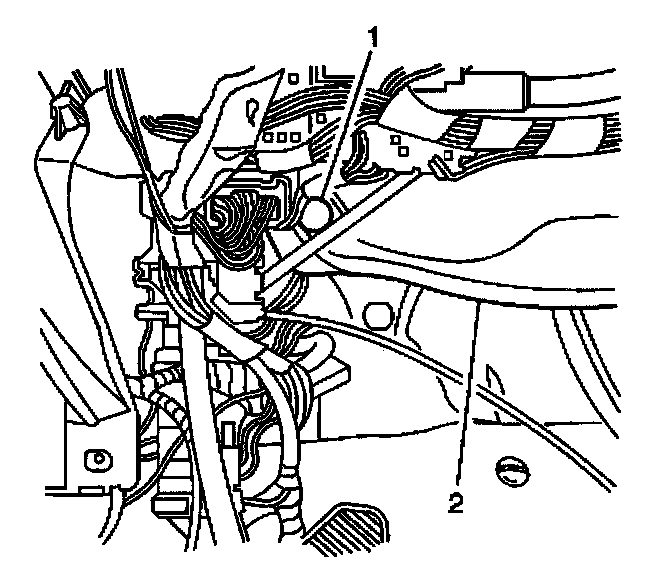

2. Remove the following components from the instrument panel (IP) assembly:
^ The plastic retainer (1)
^ The left IP outer air outlet duct (2)

INSTALLATION PROCEDURE
1. Install the left IP outer air outlet duct (2) to the IP assembly. Secure the duct with the plastic retainer (1).
2. Install the IP drivers knee bolster reinforcement.
