Home
>>
Chevrolet
>>
1999
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>
Gauge Fuse and Multifunction Alarm Module
Gauge Fuse and Multifunction Alarm Module

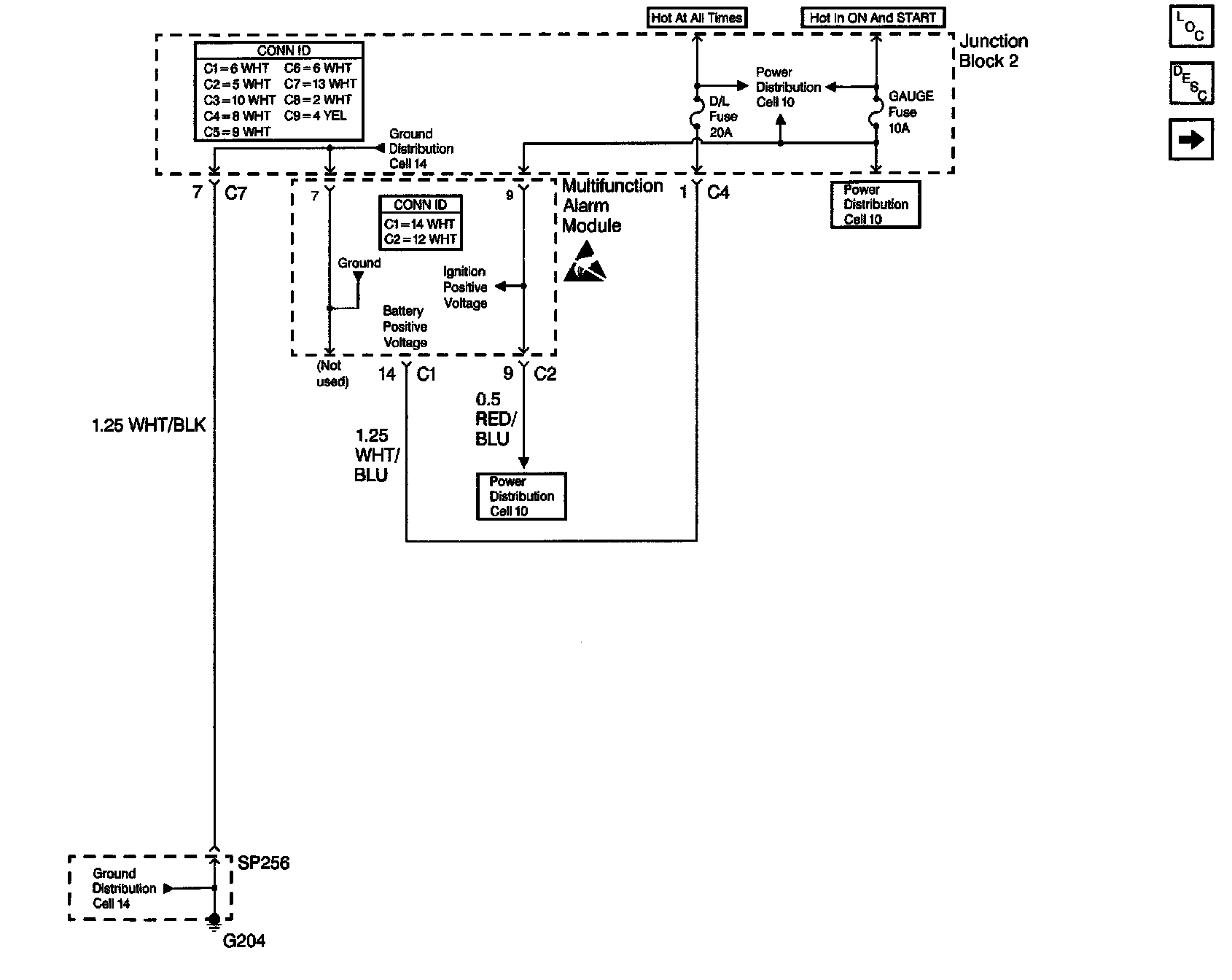

Door Locks Schematics: Gauge Fuse And Multifunction Alarm Module:
