Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Keyless Entry
>>
Door Lock Actuators and Multifunction Alarm Module
Door Lock Actuators and Multifunction Alarm Module

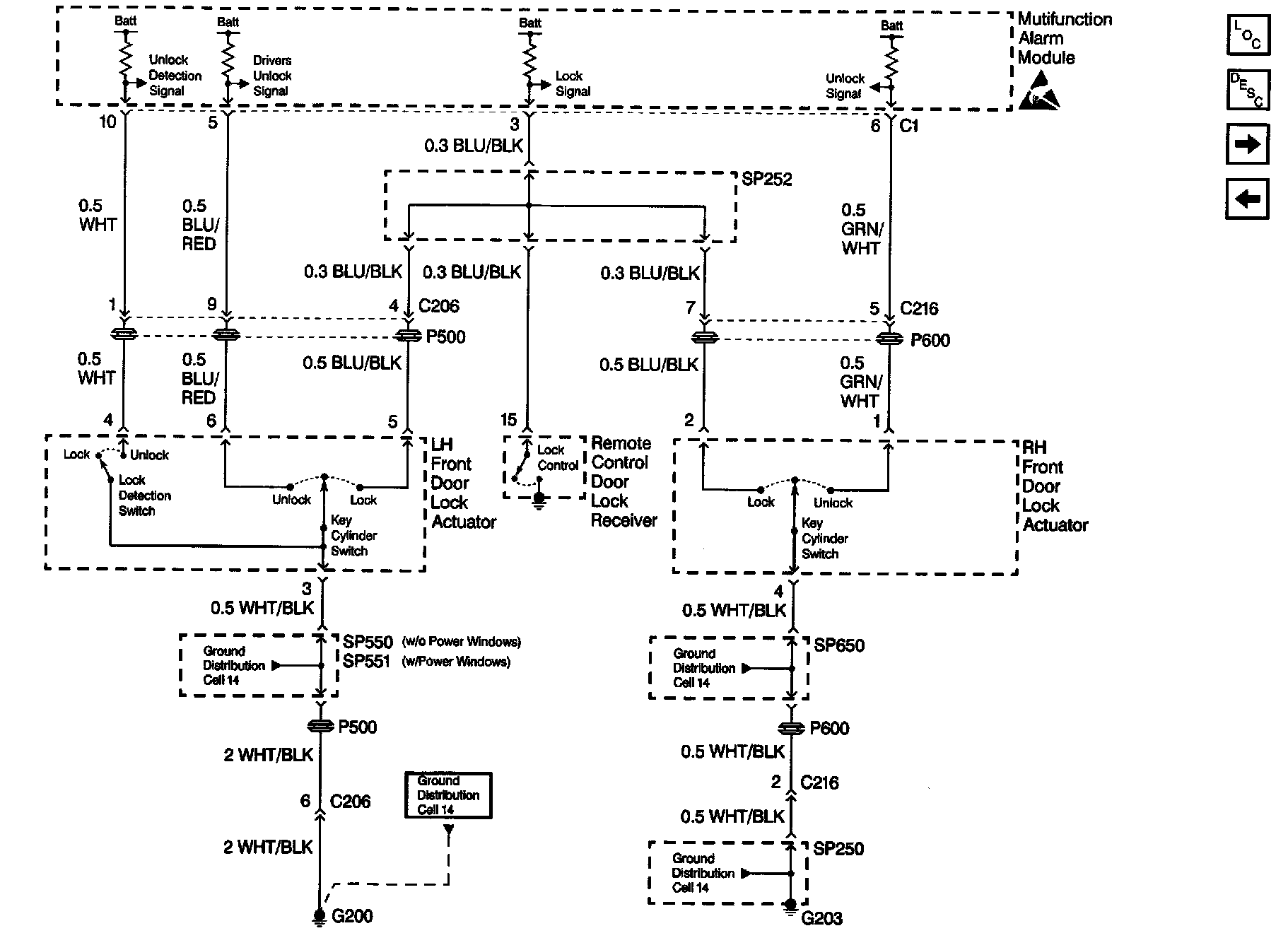

Keyless Entry Schematics: Door Lock Actuators And Multifunction Alarm Module:
