HVAC System - Manual
>>
HVAC Compressor/Condenser Fan Control Schematics
>>
A/C Condenser Fan M, A/C Dual PRESS Switch, Engine Main Relay
A/C Condenser Fan M, A/C Dual PRESS Switch, Engine Main Relay

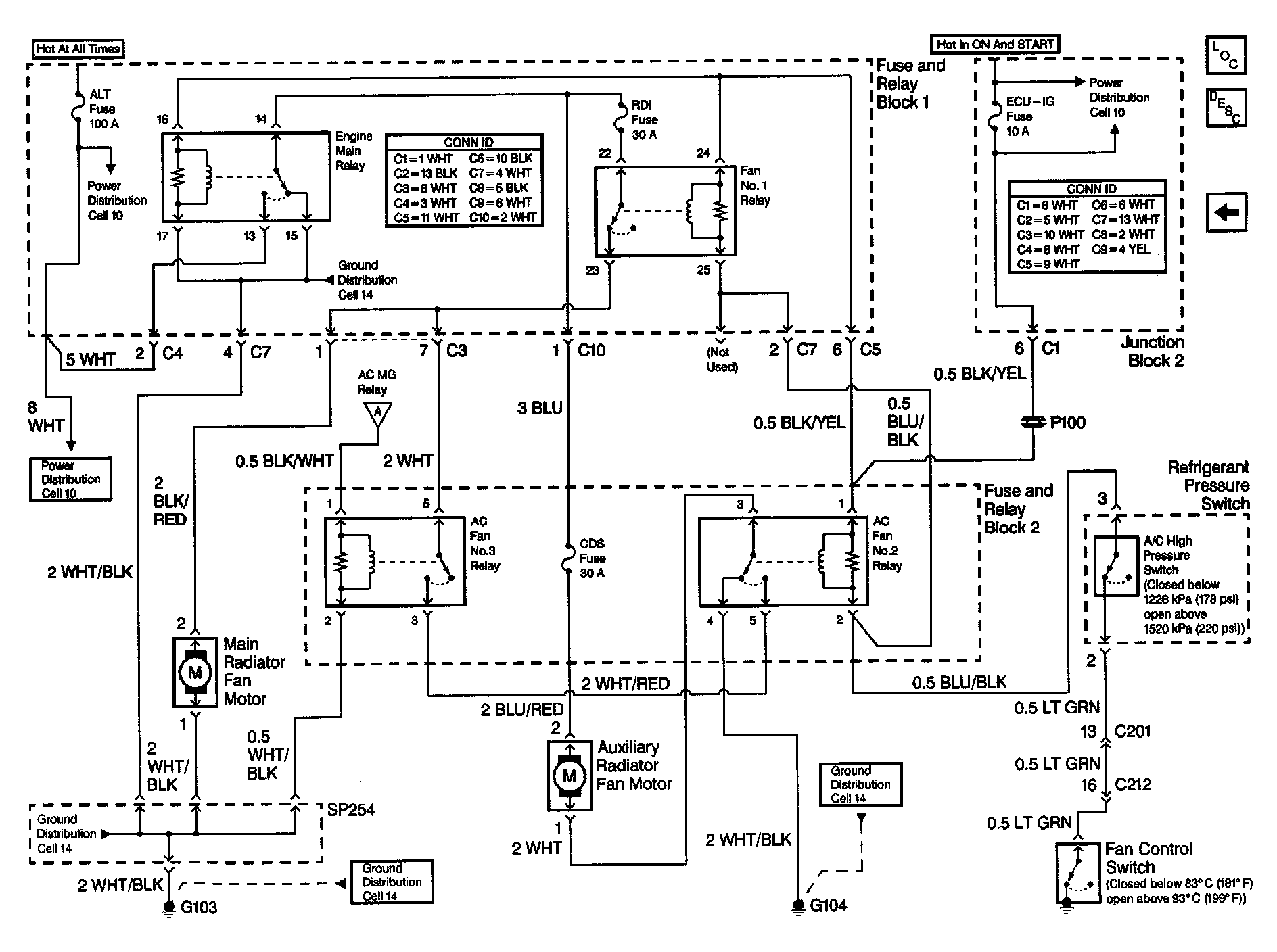

HVAC Compressor/Condenser Fan Control Schematics: A/C Condenser Fan Motor, A/C Dual Pressure Switch, Engine Main Relay:
