Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>
Fuse and Relay Block 1 C7
Fuse and Relay Block 1 C7

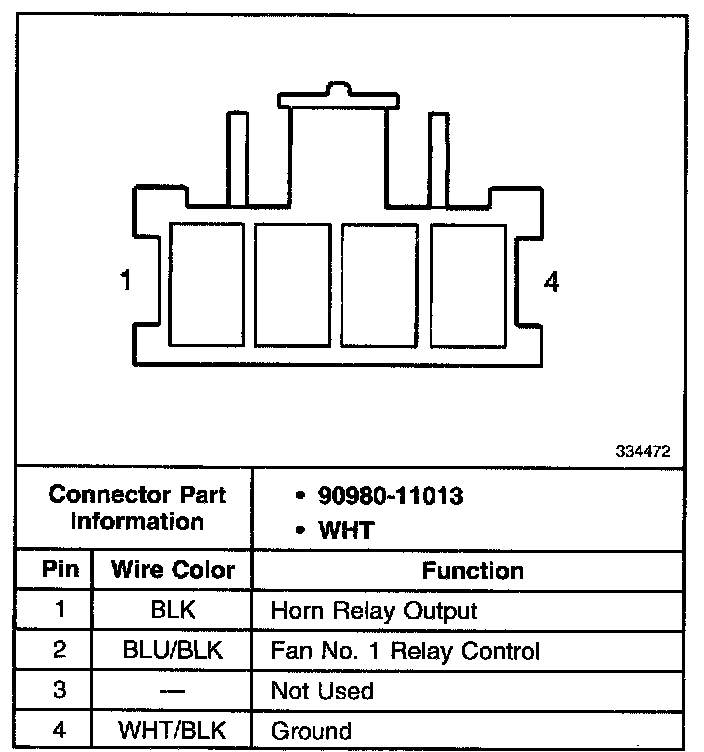

Fuse And Relay Block 1 C7:
