Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block
>>

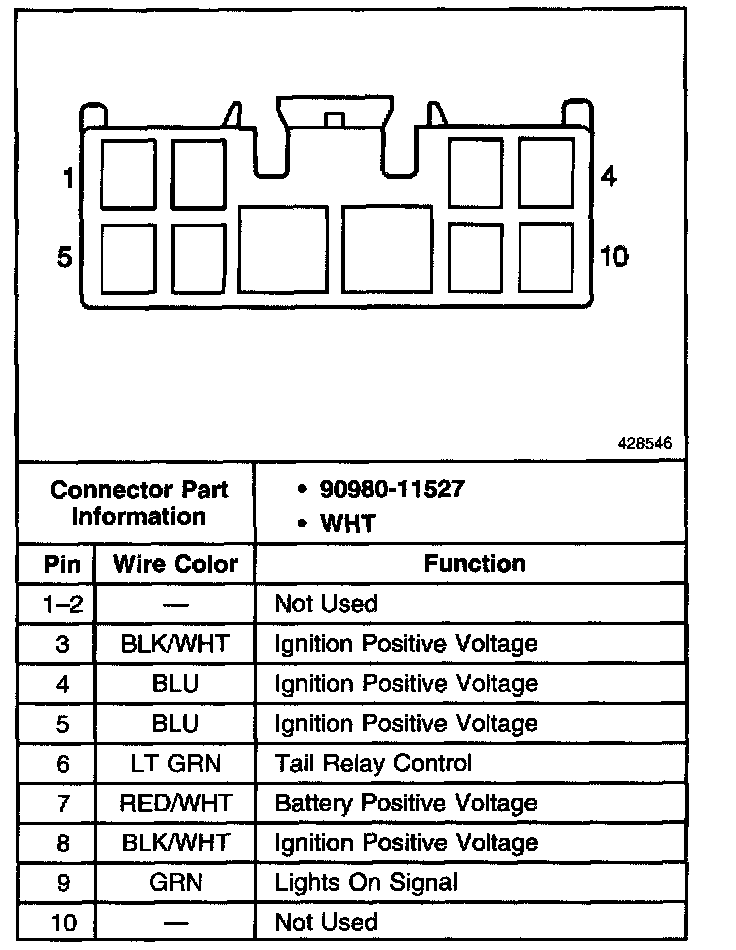

Junction Block 2 C3
Junction Block 2 C3
Junction Block 2 C3:
