Home
>>
Chevrolet
>>
1999
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block
>>

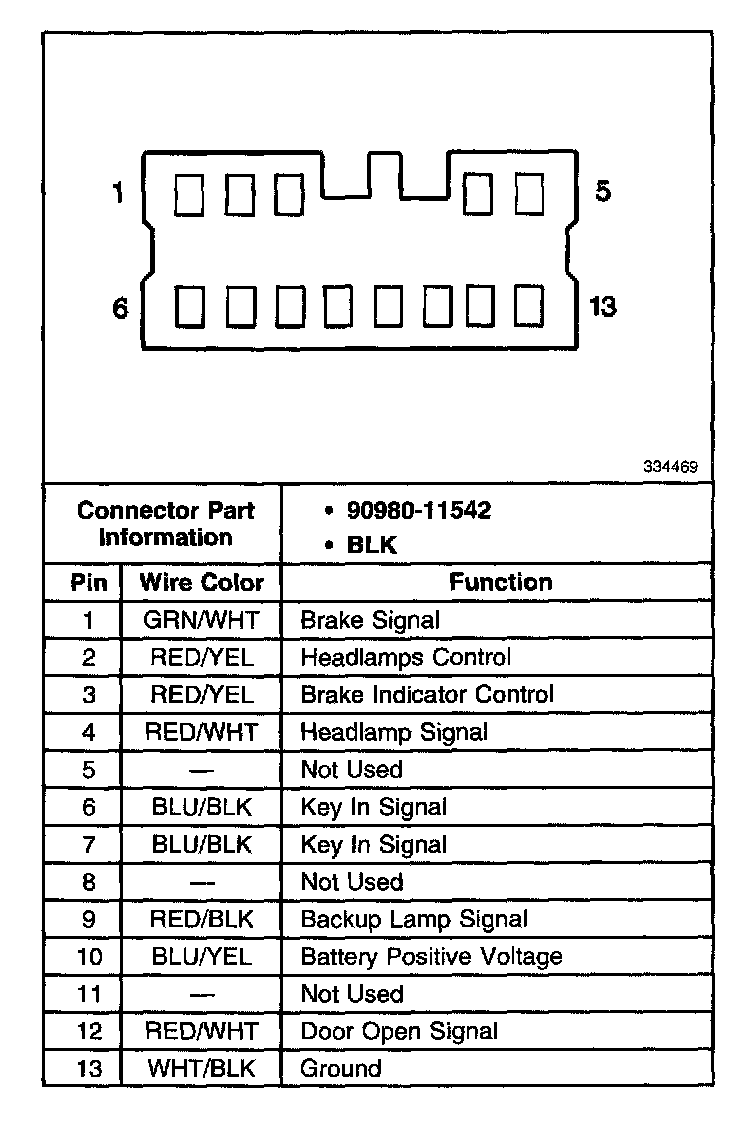

Junction Block 1 C3
Junction Block 1 C3
Junction Block 1 C3:
