Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
Combination Lamp, RH Rear
Combination Lamp, RH Rear

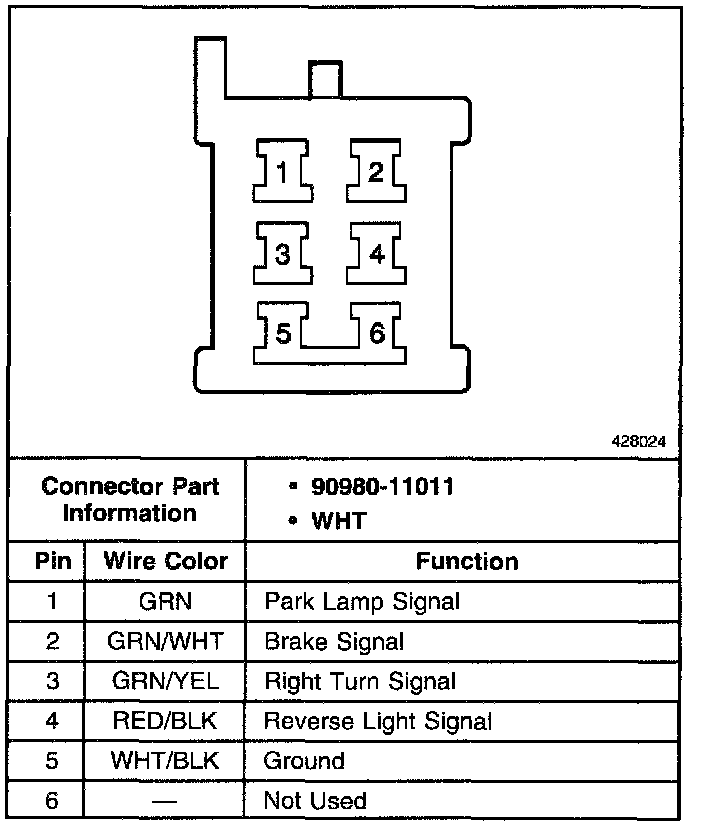

RH Rear Combination Lamp:
