Mirror Replacement

REMOVAL PROCEDURE

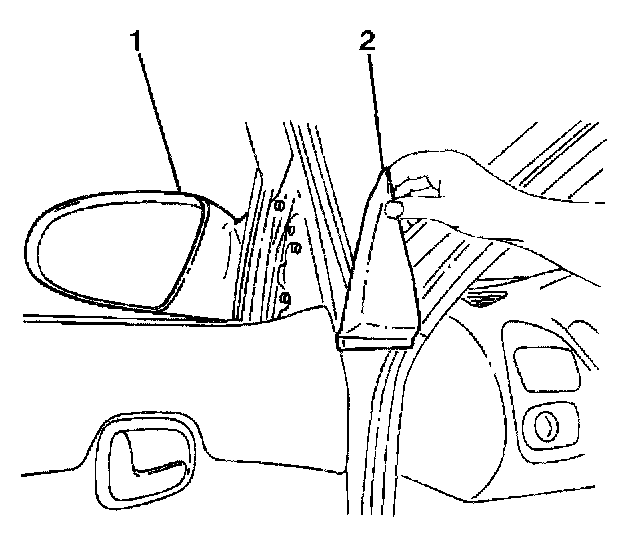

1. Unclip and remove the inner mirror garnish (2) from the door.

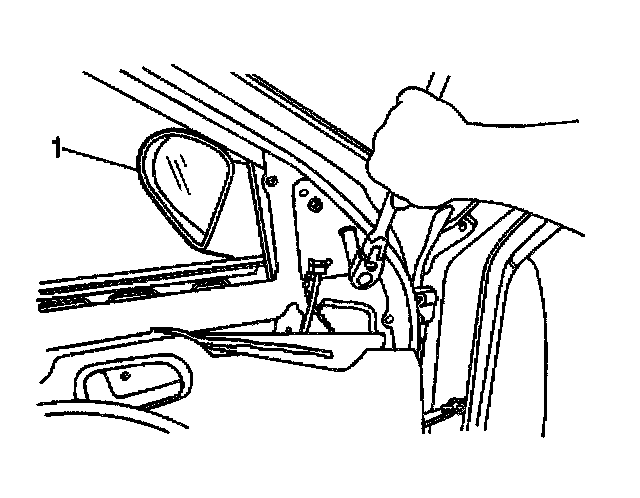

2. Remove the following components from the door:
^ The 3 nuts
^ The outside rearview mirror (1)

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.




1. Install the outside rearview mirror (1) to the door. Secure the mirror with the 3 nuts.

Tighten
Tighten the outside rearview mirror nuts to 15 N.m (11 lb ft).




2. Install the inner mirror garnish (2) to the door.
