Trim Plate Replacement - Console

REMOVAL PROCEDURE

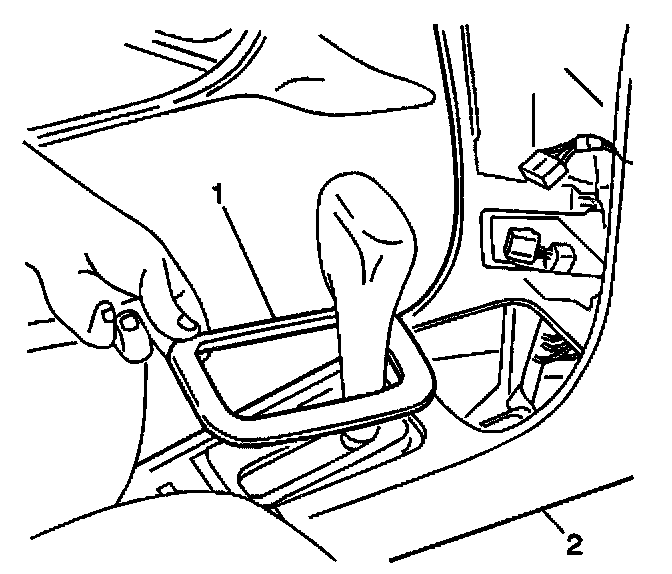

1. Gently pry the rear of the automatic transaxle control opening cover bezel (1) in order to release the tabs.
2. Remove the control opening cover bezel (1) from the console.

INSTALLATION PROCEDURE
Install the automatic transaxle control opening cover bezel (1) to the console.
