Console Replacement - Front Floor - Rear

REMOVAL PROCEDURE

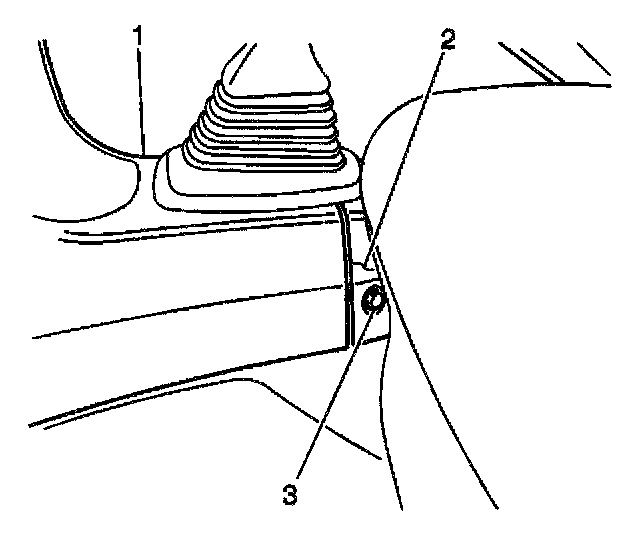

1. Remove the screw (3) from each side of the front floor rear console (2) which secures the rear console to the front floor front console (1).

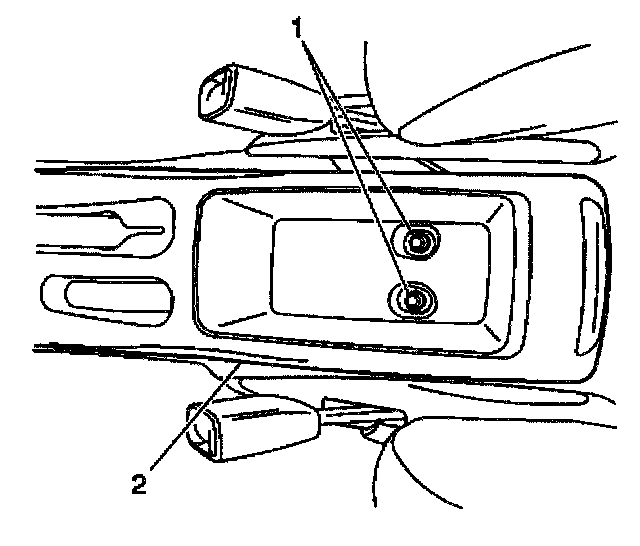

2. Remove the 2 bolts (1) from the rear compartment of the rear console (2).
3. Raise the parking brake lever.

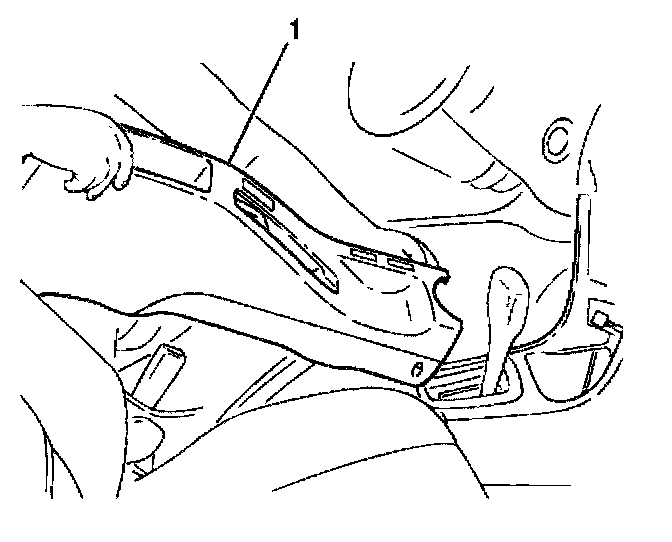

4. Remove the front floor rear console (1) from the vehicle.

INSTALLATION PROCEDURE



1. Install the front floor rear console (1) to the vehicle.




2. Lower the parking brake lever

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the 2 bolts (1) to the rear compartment of the rear console.

Tighten
Tighten the front floor rear console bolts to 15 N.m (11 lb in).




4. Install the screw (3) to each side of the front floor rear console (2) which secures the rear console to the front floor front console (1).
