Wiper Motor Park Switch Replacement

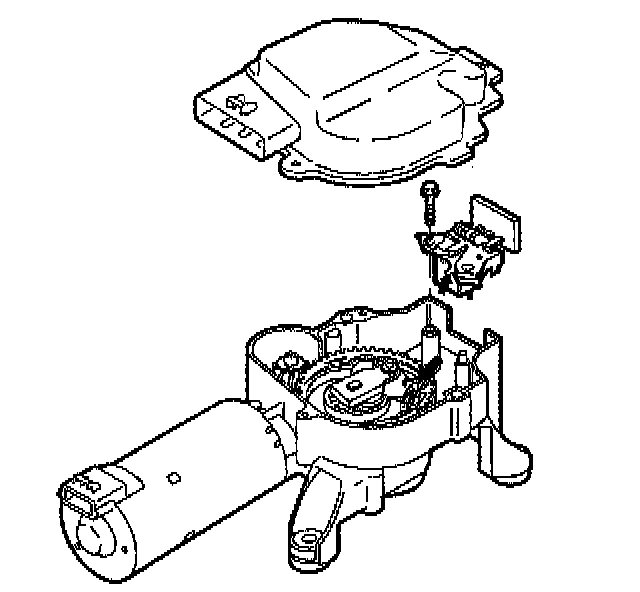

REMOVAL PROCEDURE
1. Remove the wiper motor cover assembly.

IMPORTANT: If the wiper motor is in the park position, operate the wiper motor as required to remove pawl from the relay slot.

2. Remove the screw and park the switch from the wiper motor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the park switch assembly onto the wiper motor assembly with the screw.
2. Operate the wiper motor assembly back into the park position (pawl is in the relay slot).
3. Install the wiper motor cover assembly into the wiper motor.
