Wiper Blade Element Replacement

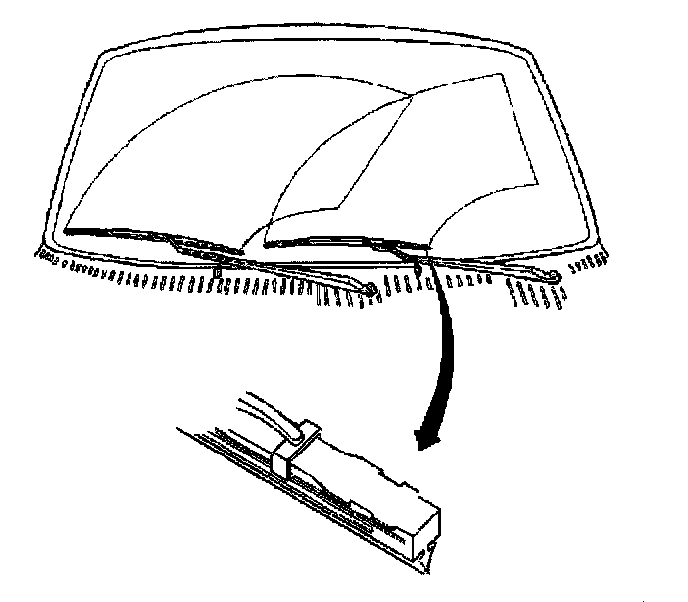

REMOVAL PROCEDURE
1. Remove the wiper blade from the wiper arm.

IMPORTANT: The wiper blade element must be replaced if removed from the wiper blade.

2. Remove the wiper blade element by pulling it out through the wiper blade assembly claws.

INSTALLATION PROCEDURE
1. Install the wiper blade element to the wiper blade assembly by sliding the wiper blade element through the wiper blade assembly claws until the claws are locked into notches in the wiper blade element.
2. Install the wiper blade assembly onto the wiper arm assembly.
