Transmission Pressure Test Port: Service and Repair

Removal Procedure





1. Remove the throttle body air inlet duct. Refer to Computers and Controls.

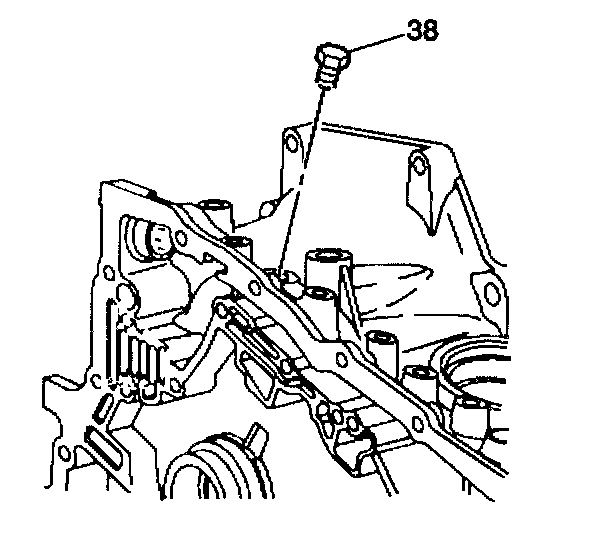

2. Remove the line the pressure pipe plug (38).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

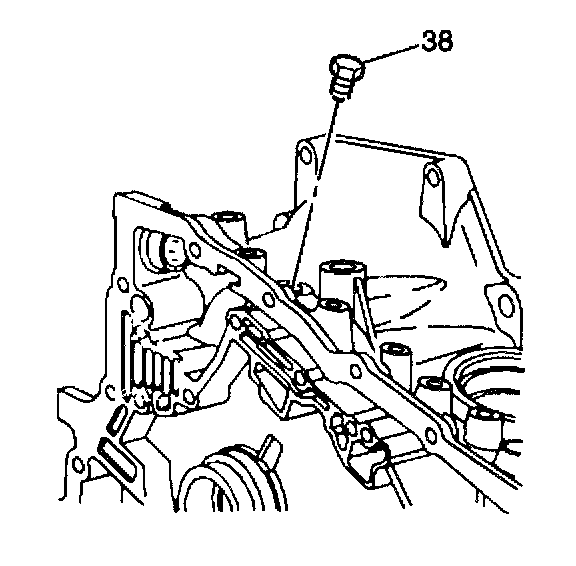

1. Install the line pressure pipe plug (38).
Tighten the line pressure pipe plug (38) to 11 Nm (97 inch lbs.).
2. Install the throttle body air inlet duct. Refer to Computers and Controls.
