AT Mount Replacement

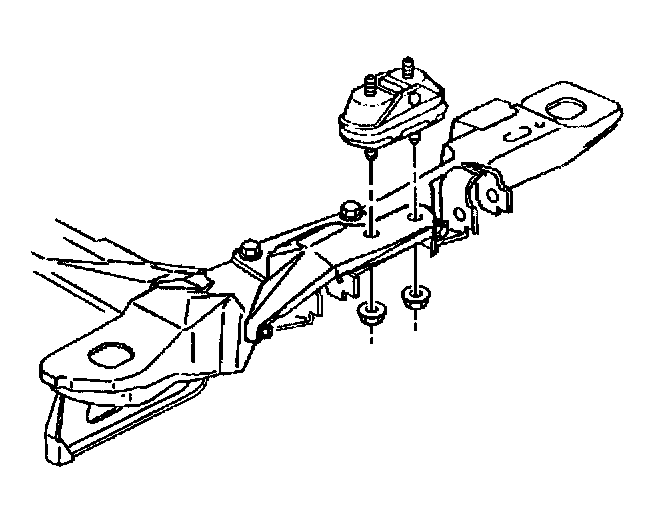

Removal Procedure





1. Remove the transaxle bracket. Refer to AT Mount Bracket Replacement.
2. Remove the transaxle mount lower nuts to the transaxle mount frame bracket.
3. Remove the transaxle mount from the transaxle mount frame bracket.

Installation Procedure





1. Install the transaxle mount to the transaxle mount frame bracket.

Notice: Refer to Fastener Notice in Cautions anal Notices.

2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.
Tighten the transaxle mount lower nuts to 47 Nm (35 ft. lbs.).
3. Install the transaxle bracket to the transaxle. Refer to AT Mount Bracket Replacement.
