AT Range Selector Cable Replacement (AT Console Shift Control)

Removal Procedure

Caution: The automatic transaxle range selector cable is made out of two cable sections. After initial connection never separate the two metal couplings from one another. Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle remove the cable at the automatic transaxle range selector lever and at the automatic transaxle range selector cable bracket. If either section of the cable needs to be replaced, replace both of the cable sections. Loss of connection integrity of the two mete/ couplings can cause loss of transaxle shift control which could result in personal injury.

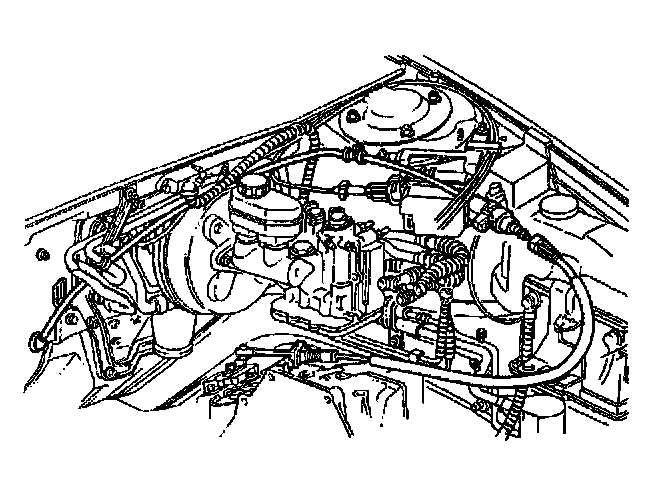

1. Remove the automatic transaxle range selector cable from wiring harness clip(s) or retainer(s) in the engine compartment.
2. Remove the console. Refer to Instrument Panel, Gauges and Warning Indicators.
3. Pull the carpet back to expose the automatic transaxle range selector cable. Refer to Seats and Carpet.

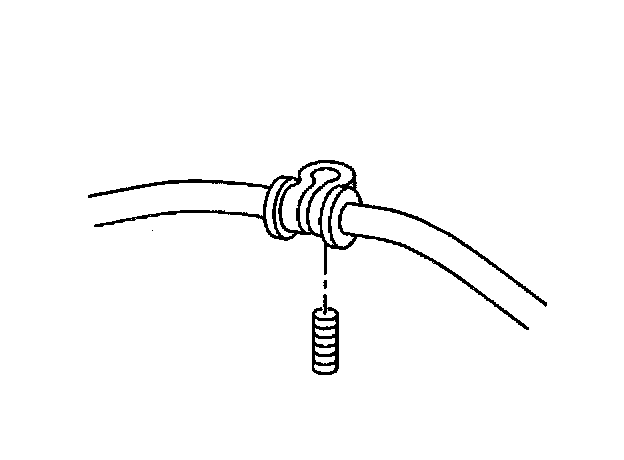

4. Remove the automatic transaxle range selector cable from retaining clip(s) or retainer(s) in the passenger compartment.

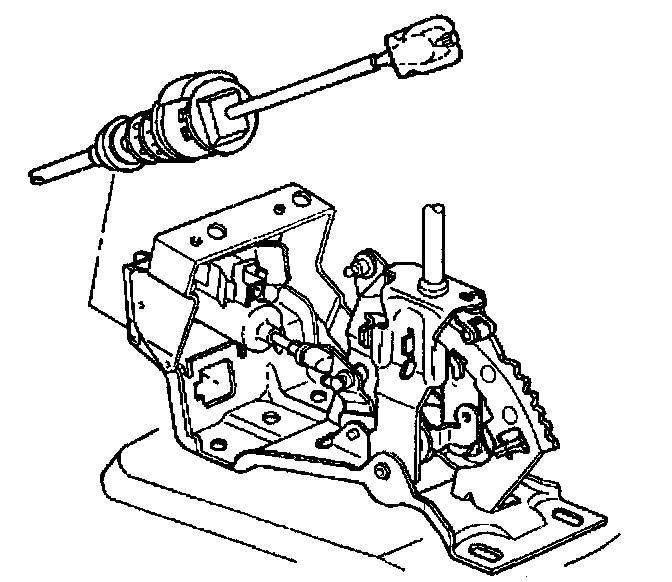

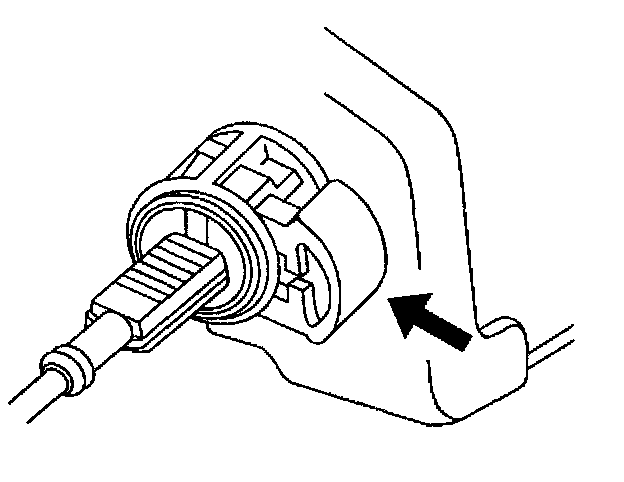

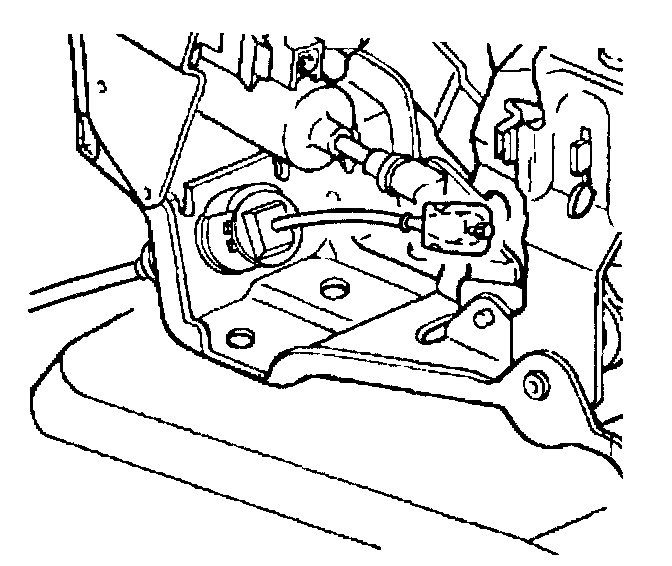

5. Disengage the automatic transaxle range selector cable retainer to the console shift control.





6. Remove the automatic transaxle range selector cable retainer from the console shift control.





7. Remove the automatic transaxle range selector cable from the console shift control.

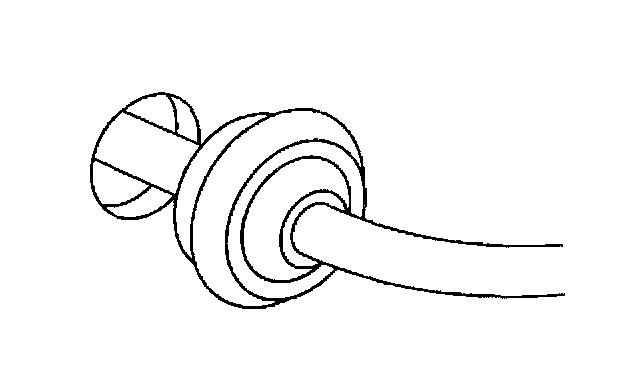

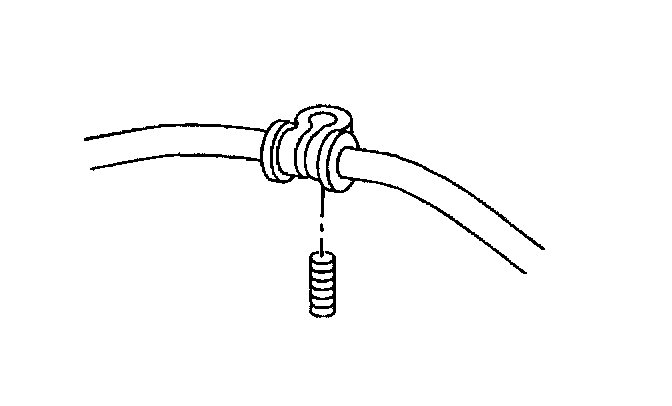

8. Remove the automatic transaxle range selector cable through the hole in the cowl.
9. Remove the automatic transaxle range selector cable from the PNP switch. Refer to AT Range Selector Cable Replacement (AT PNP Switch).

Installation Procedure

Caution: The automatic transaxle range selector cable is made out of two cable sections. After initial connection never separate the two metal couplings from one another. Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle remove the cable at the automatic transaxle range selector lever and at the automatic transaxle range selector cable bracket. If either section of the cable needs to be replaced, replace both of the cable sections. Loss of connection integrity of the two metal couplings can cause loss of transaxle shift control which could result in personal injury.





1. Properly route and position the automatic transaxle range selector cable.

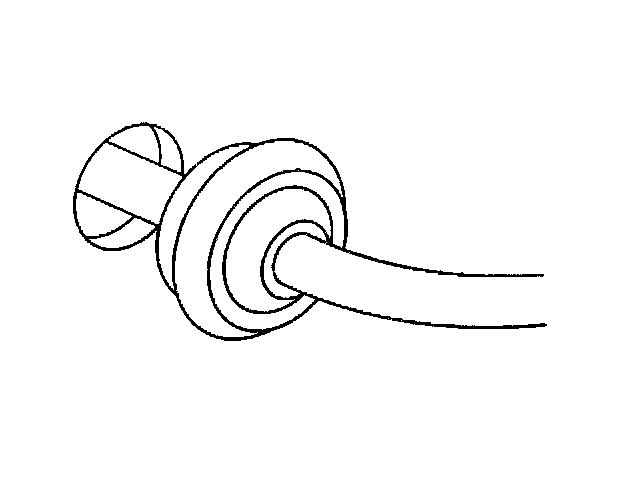

2. Install the automatic transaxle range selector cable through the hole in the cowl.
3. Install the automatic transaxle range selector cable to the PNP switch. Refer to AT Range Selector Cable Replacement (AT PNP Switch).

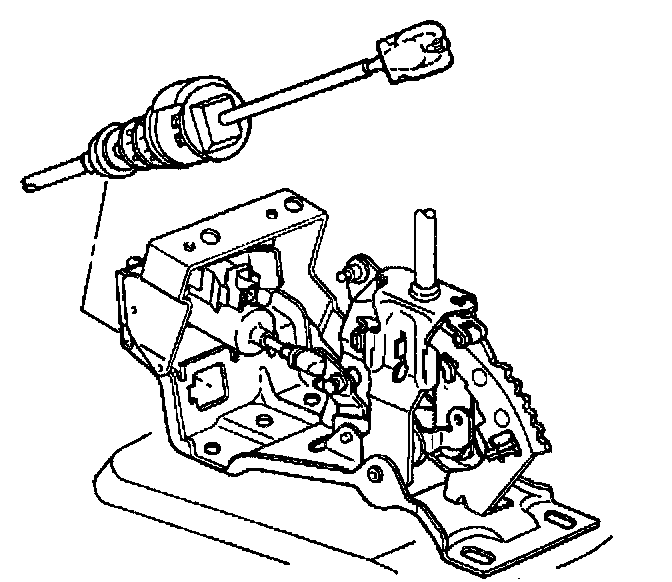

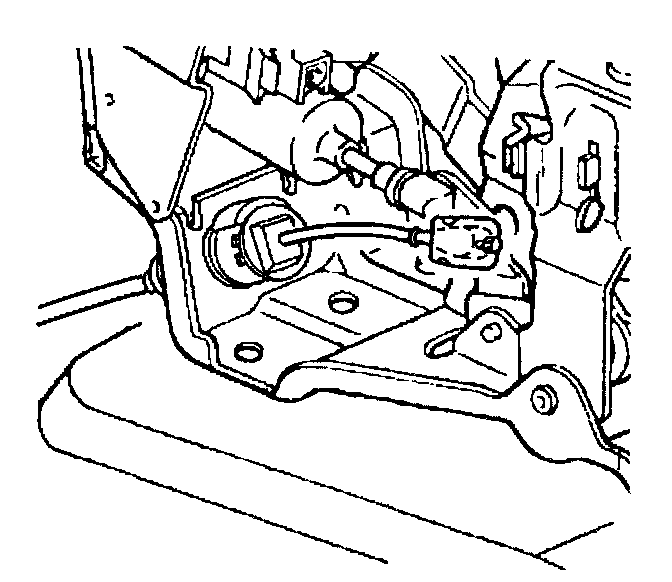

4. Install the automatic transaxle range selector cable through the console shift control bracket.





5. Install the automatic transaxle range selector cable to the console shift control.

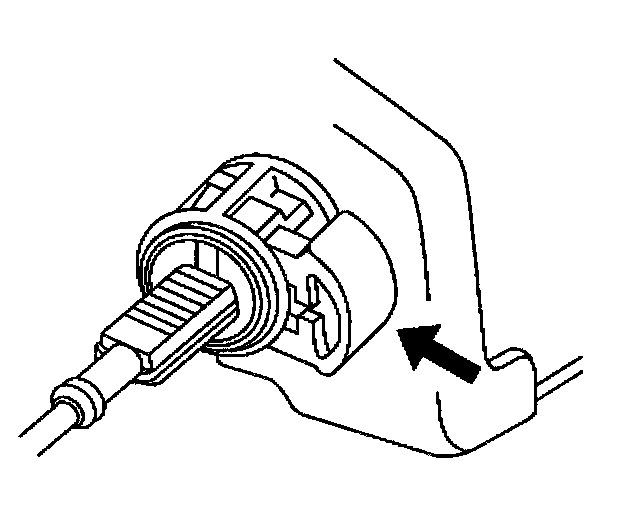

6. Engage the automatic transaxle range selector cable retainer to the console shift control.
7. Install the automatic transaxle range selector cable to retaining clip(s) or retainer(s) in the passenger compartment.
8. Install the carpet into position. Refer to Seats and Carpet.
9. Install the console. Refer to Instrument Panel, Gauges and Warning Indicators.





10. Install the automatic transaxle range selector cable to wiring harness clip(s) or retainer(s) in the engine compartment.
11. Adjust the automatic transaxle range selector cable. Refer to AT Range Selector Cable Replacement (New Cable Installation Only) and/or AT Range Selector Cable Adjustment.
