AT Range Selector Cable Replacement (AT Column Shift Control)

Removal Procedure

Caution: The automatic transaxle range selector cable is made out of two cable sections. After initial connection never separate the two metal couplings from one another. Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle remove the cable at the automatic transaxle range selector lever and at the automatic transaxle range selector cable bracket. If either section of the cable needs to be replaced, replace both of the cable sections. Loss of connection integrity of the two metal couplings can cause loss of transaxle shift control which could result in personal injury.

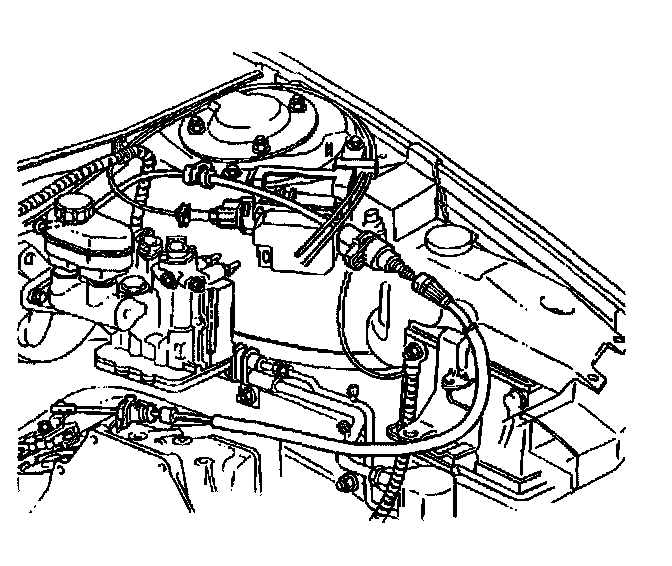

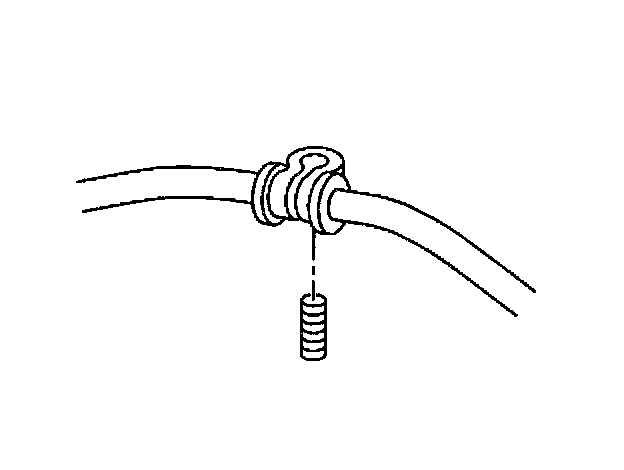

1. Remove the automatic transaxle range! selector cable retainer from the stud in the engine compartment.
2. Remove the steering column trim panel. Refer to Instrument Panel, Gauges and Warning Indicators.

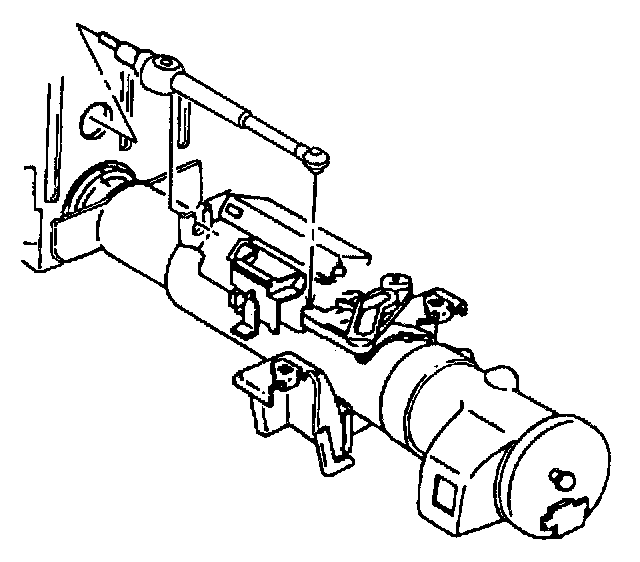

3. Remove the automatic transaxle range selector cable from the shift control lever.
4. Remove the automatic transaxle range selector cable from the PNP switch. Refer to AT Range Selector Cable Replacement (AT PNP Switch)

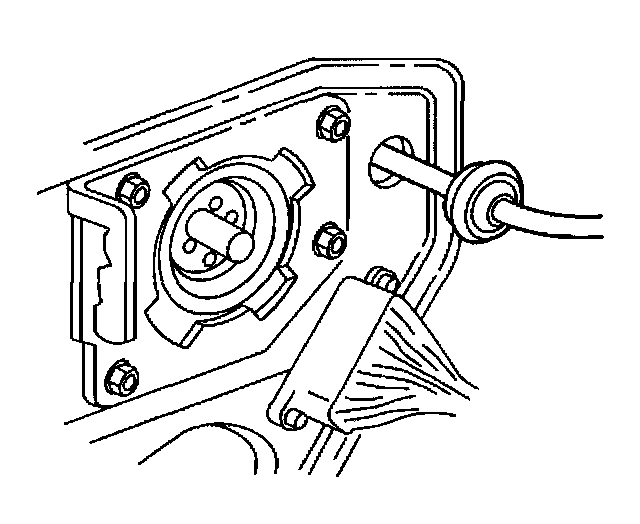

5. Remove the automatic transaxle range selector cable through the hole in the dash.

Installation Procedure

Caution: The automatic transaxle range selector cable is made out of two cable sections. After initial connection never separate the two metal couplings from one another. Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle remove the cable at the automatic transaxle range selector lever and at the automatic transaxle range selector cable bracket If either section of the cable needs to be replaced, replace both of the cable sections. Loss of connection integrity of the two metal couplings can cause loss of transaxle shift control which could result in personal injury.





1. Install the automatic transaxle range selector cable through the hole in the dash.





2. Properly route and position the automatic transaxle range selector cable.
3. Install the automatic transaxle range selector cable to the PNP switch. Refer to AT Range Selector Cable Replacement (AT PNP Switch).

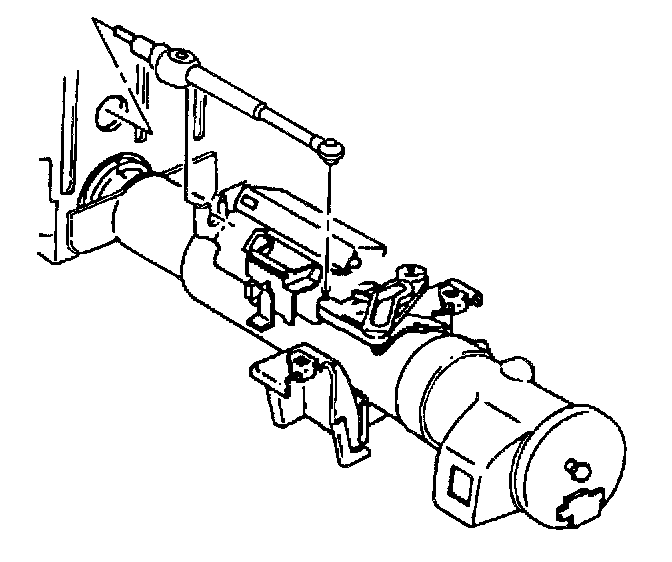

4. Install the automatic transaxle range selector cable to the shift control lever.
5. Install the steering column trim panel. Refer to Instrument Panel, Gauges and Warning Indicators!.

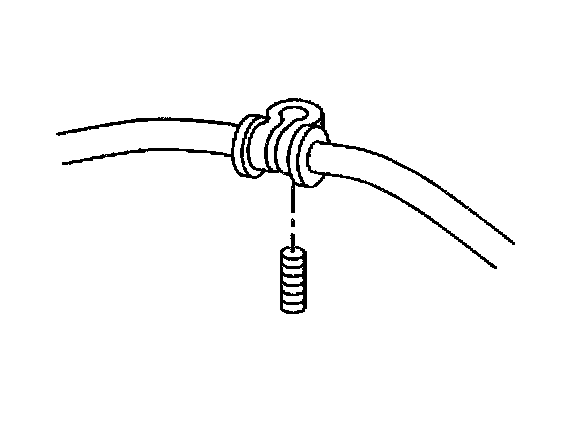

6. Install the automatic transaxle range selector cable retainer to the stud in the engine compartment.
7. Adjust the transaxle side automatic transaxle range selector cable. Refer to AT Range Selector Cable Adjustment.
