Multifunction, Turn Signal Lever

REMOVAL PROCEDURE

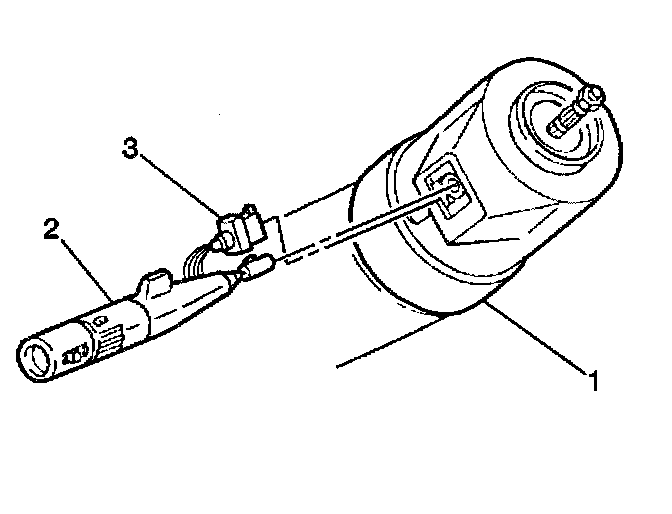

1. Verify that the lever (2) is in the center of the OFF position.
2. Disconnect the electrical connection (3) behind the lever (2).
3. Remove the switch lever (2) by pulling straightly outward on the lever (2).

INSTALLATION PROCEDURE





1. Verify that the lever (2) is in the center of the OFF position.
2. Align the tab.
3. Install the switch lever (2) by pushing it in straight.
4. Connect the electrical connection (3).
5. Test the operation.
