Installation Procedure

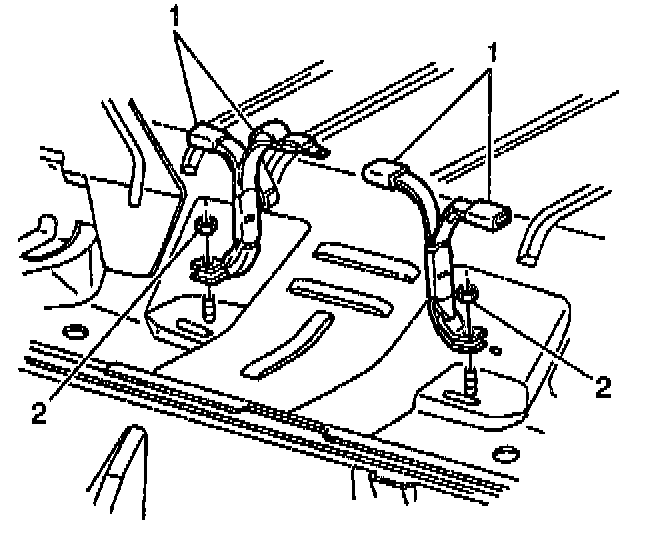

1. Install the center and inboard buckle belts (1) to the vehicle.

Important: Verify that the seat belt anchors are installed with the proper orientation.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the center and inboard buckle belt bolt (2).

Tighten
Tighten the bolt to 42 N.m (31 lb ft).

Important: Verify that the buckle is properly routed through the rear seat cushion.

3. Install the rear seat cushion.
