Daytime Running Lamp Control Unit: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the LH instrument panel (IP) insulator.
3. Disconnect the electrical connectors from the daytime running lamp (DRL) module.

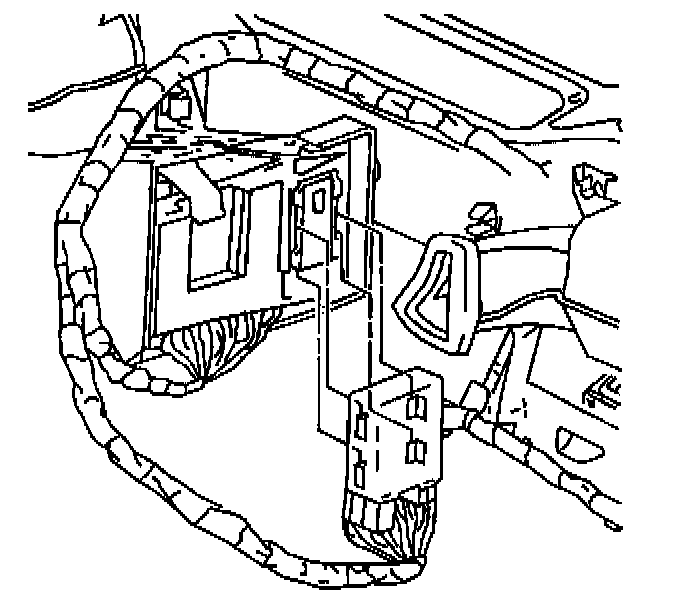

4. Release the retaining tab and slide the DRL module down off of the BCM bracket to remove.

INSTALLATION PROCEDURE
1. Position and slide the DRL module up onto the BCM bracket until the module is secured by the retaining tab.
2. Connect the electrical connectors to the DRL module.
3. Install the LH IP insulator.
4. Connect the negative battery cable.
