Canister Purge Control Valve: Service and Repair

REMOVAL PROCEDURE

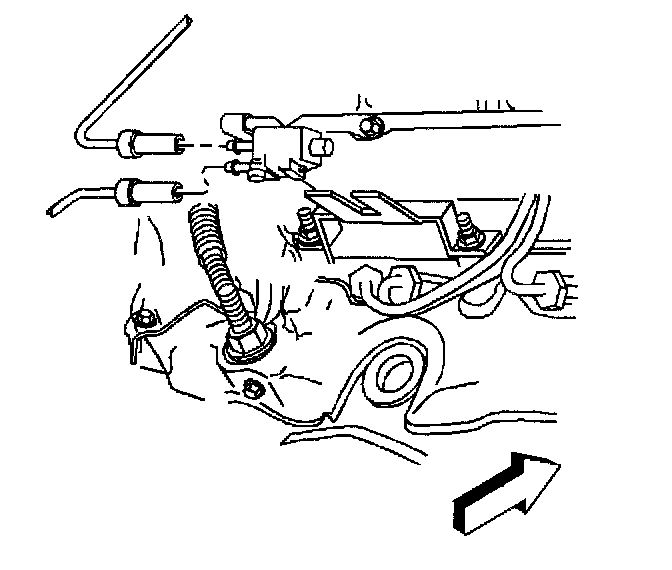

1. Disconnect the negative battery cable.
2. Note the position of the hoses for installation.
3. Remove the electrical connector and hoses from EVAP canister purge valve.
4. Bend the tab on the EVAP canister purge valve mounting bracket to release the EVAP canister purge valve.
5. Remove the EVAP canister purge valve.

INSTALLATION PROCEDURE
1. Bend tab on mounting bracket to retain the EVAP canister purge valve.
2. Reinstall the EVAP Canister purge valve to purge valve mounting bracket.
Once installed pull on the EVAP canister purge valve to ensure that the part will be held in place.
3. Connect the electrical connector and hoses to solenoid.
4. Reconnect the negative battery cable.
