Powertrain Controls

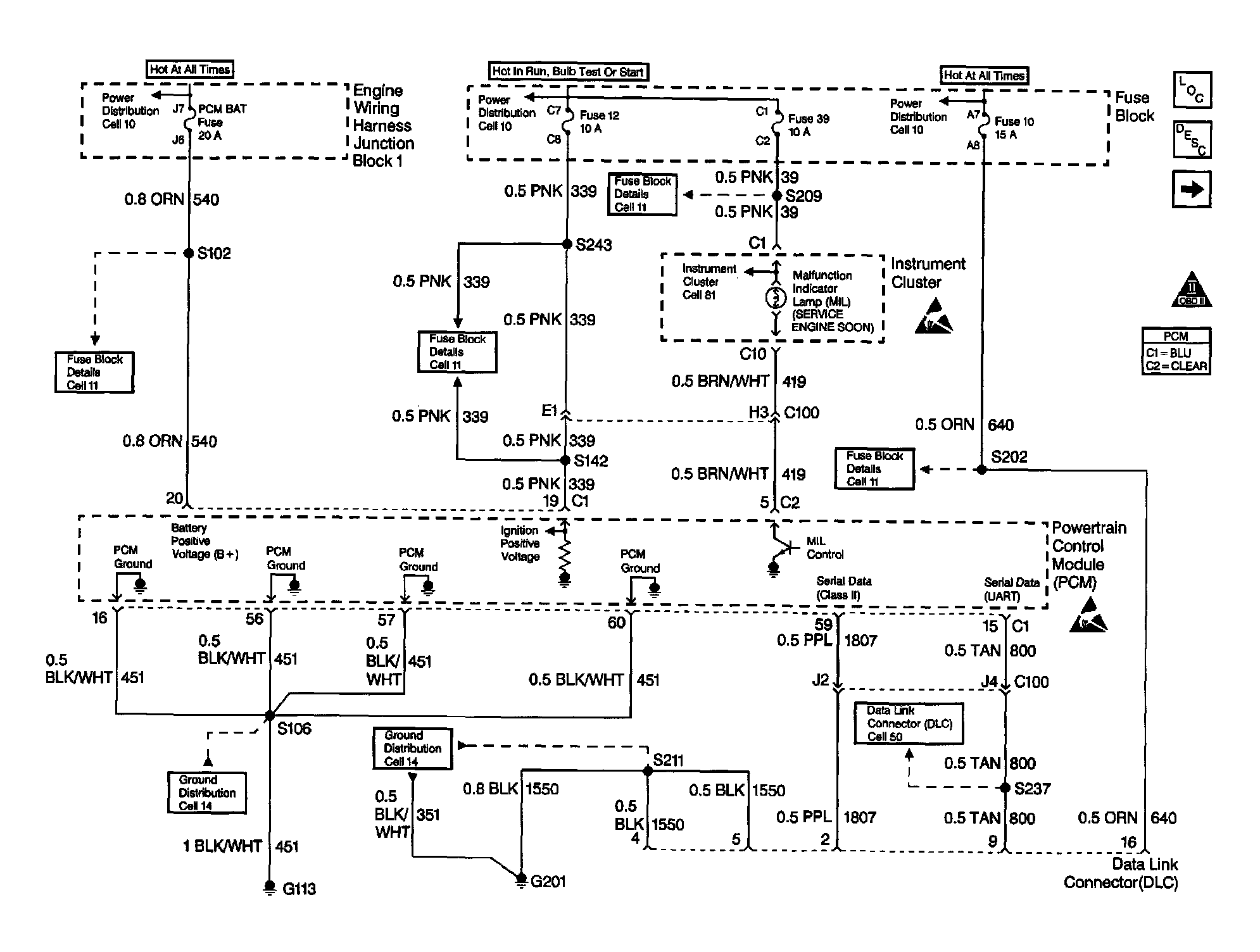

Power, Ground, MIL and DLC

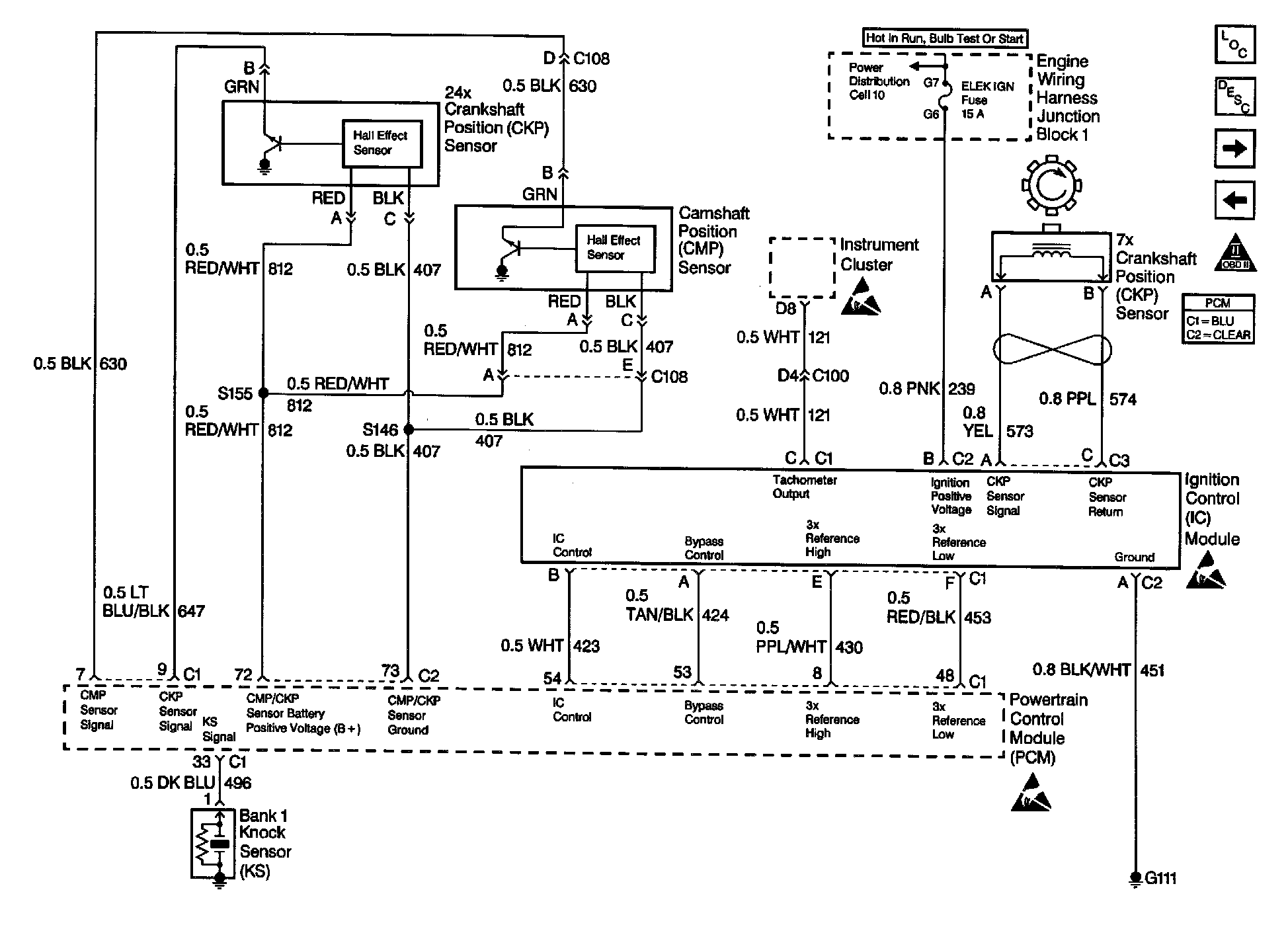

Ignition System Knock Sensors

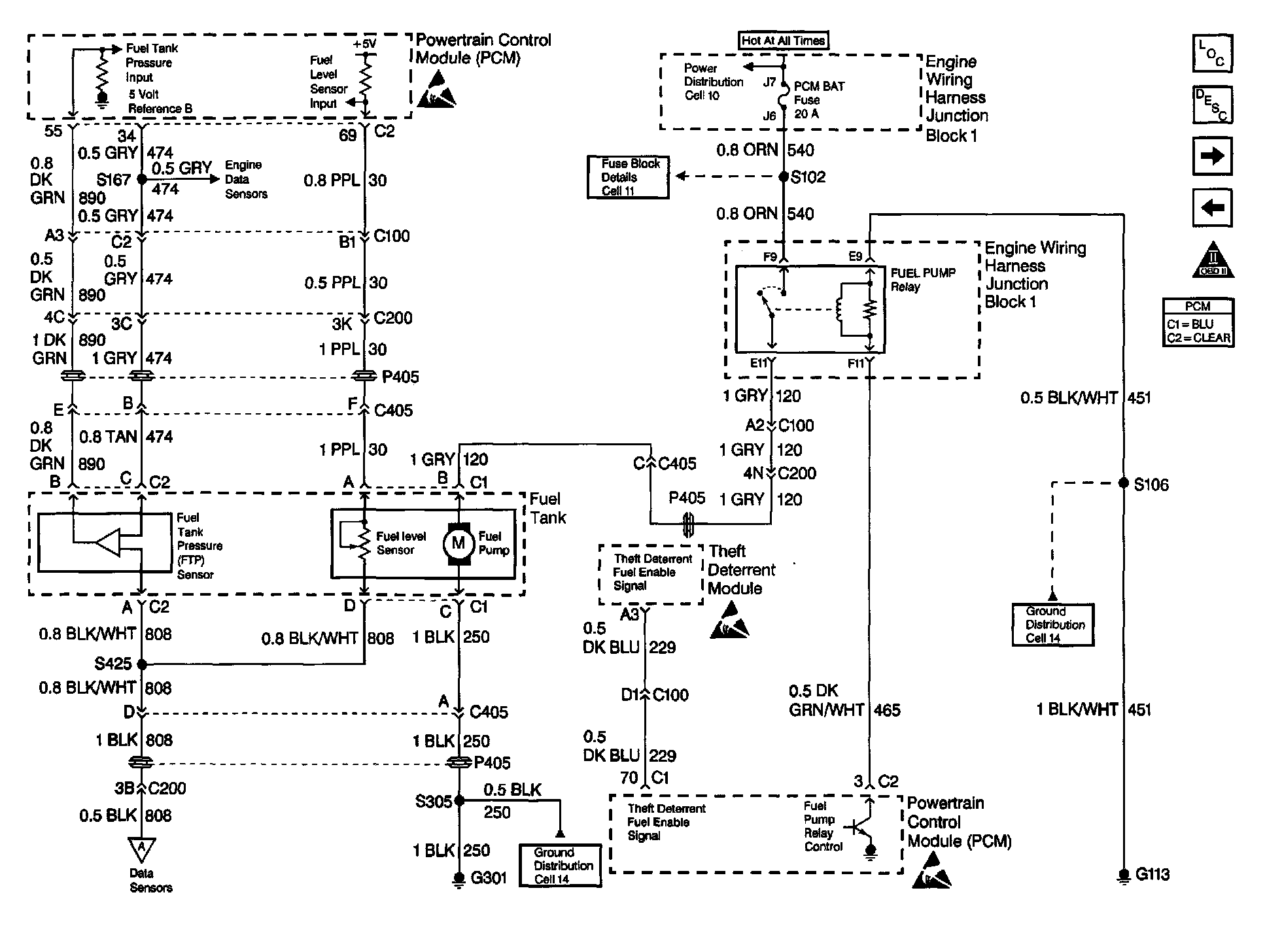

Fuel Controls

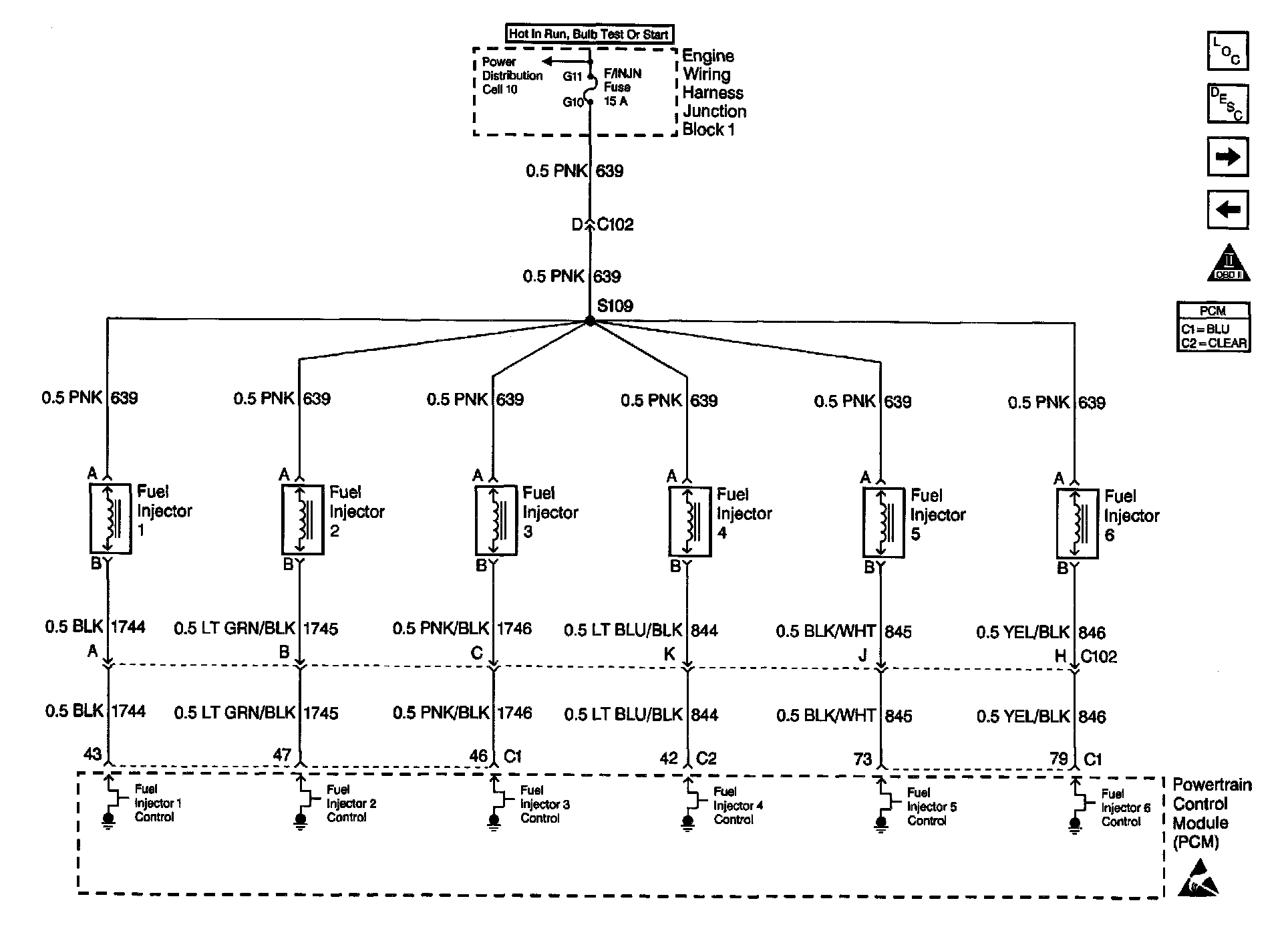

Fuel Injectors

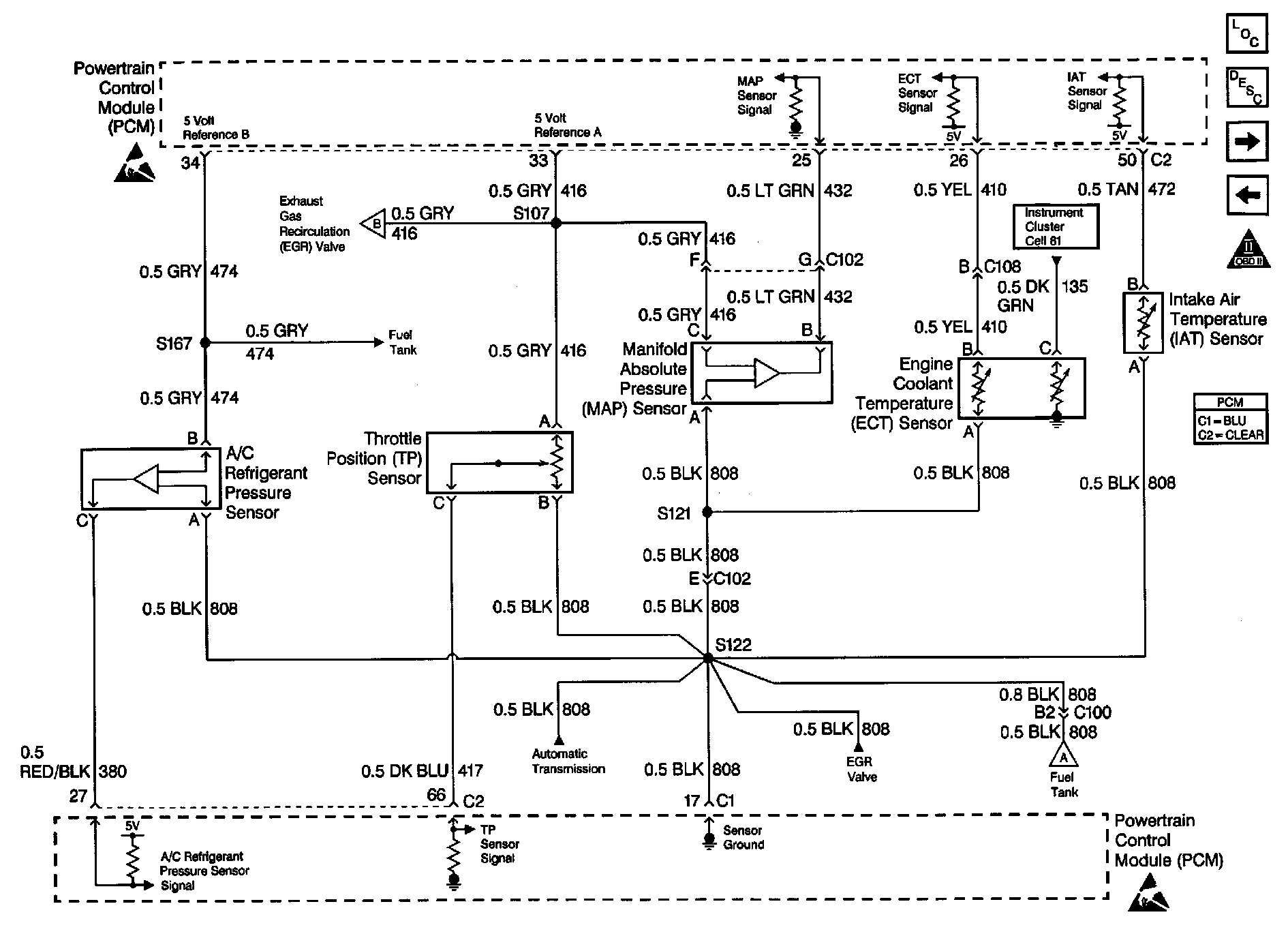

Engine Data Sensors - A/C Refrigerant Pressure, TP, MAP, ECT and IAT

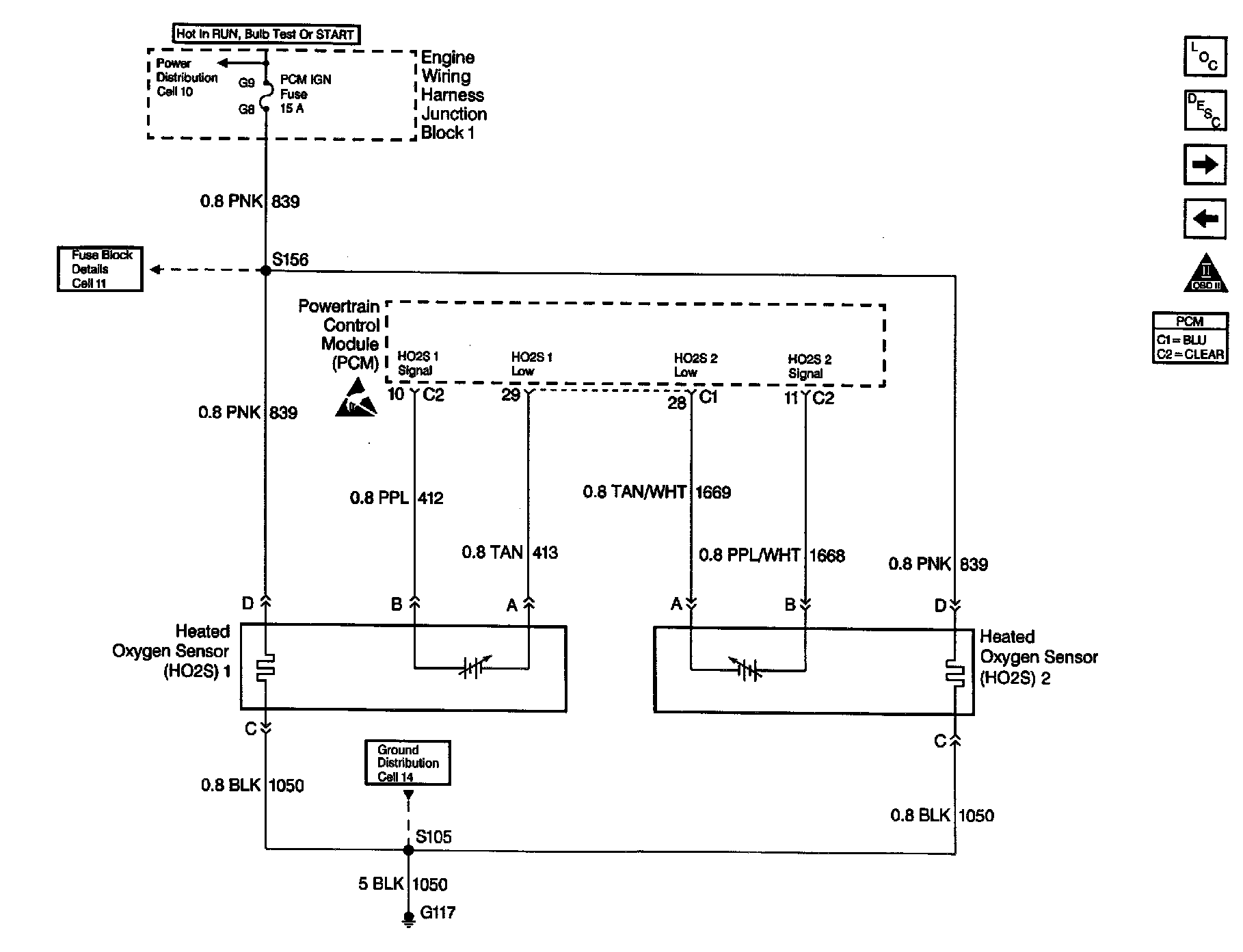

Engine Data Sensors - HO2S1, HO2S2

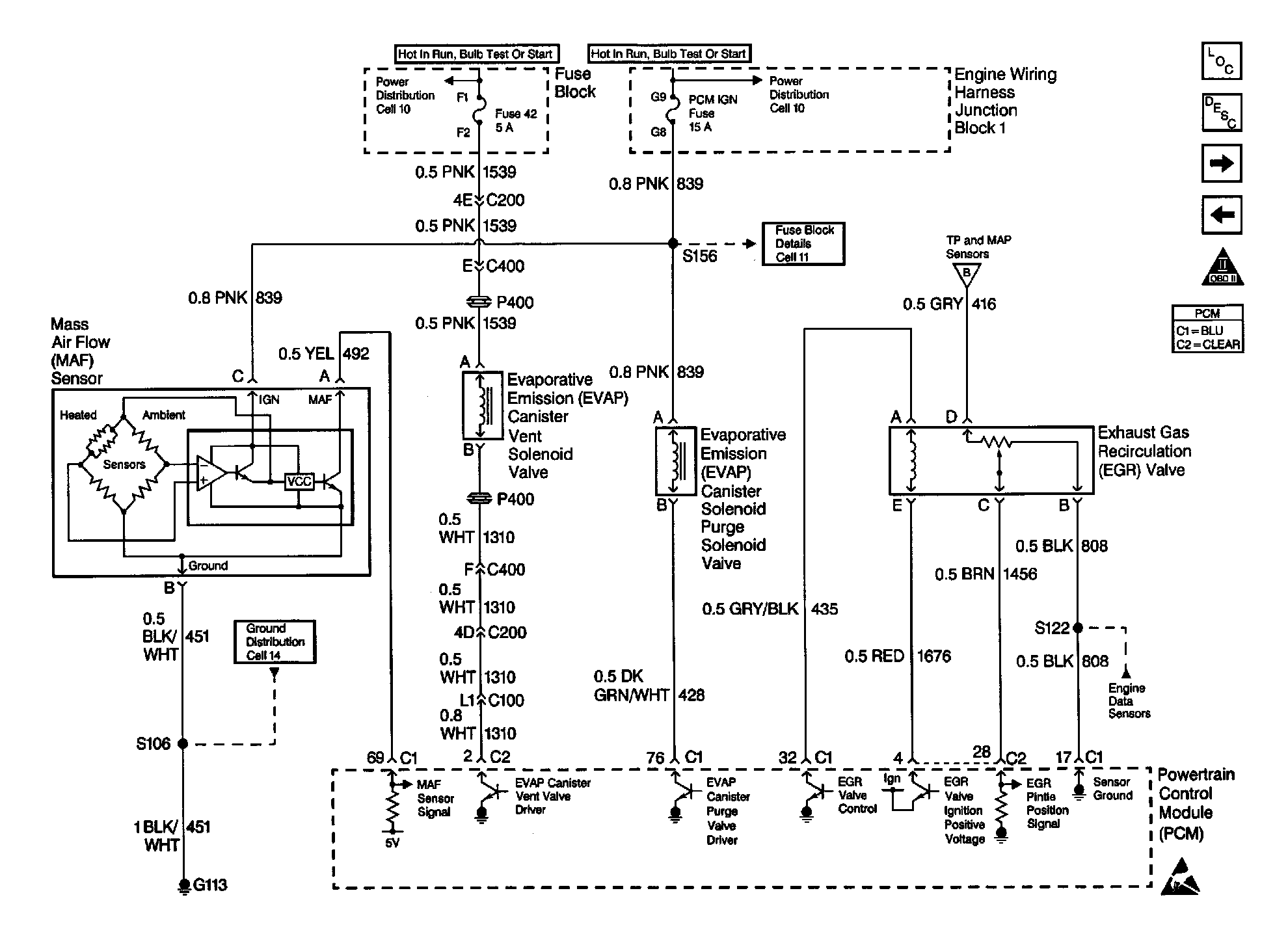

Engine Data Sensors - MAF, [1][2]EVAP Vent, EVAP Purge, EGR

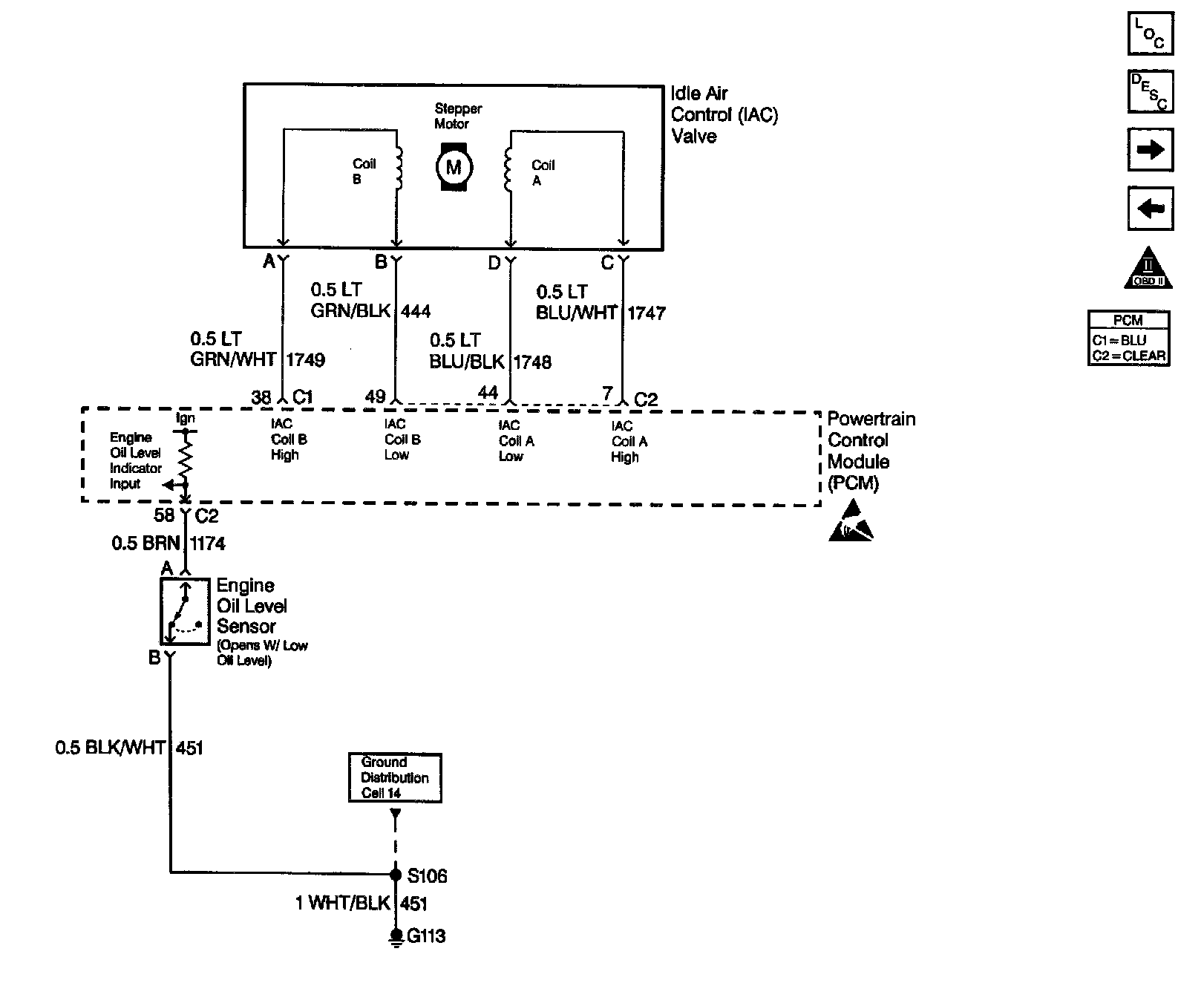

Engine Data Sensors - IAC, Engine Oil Level

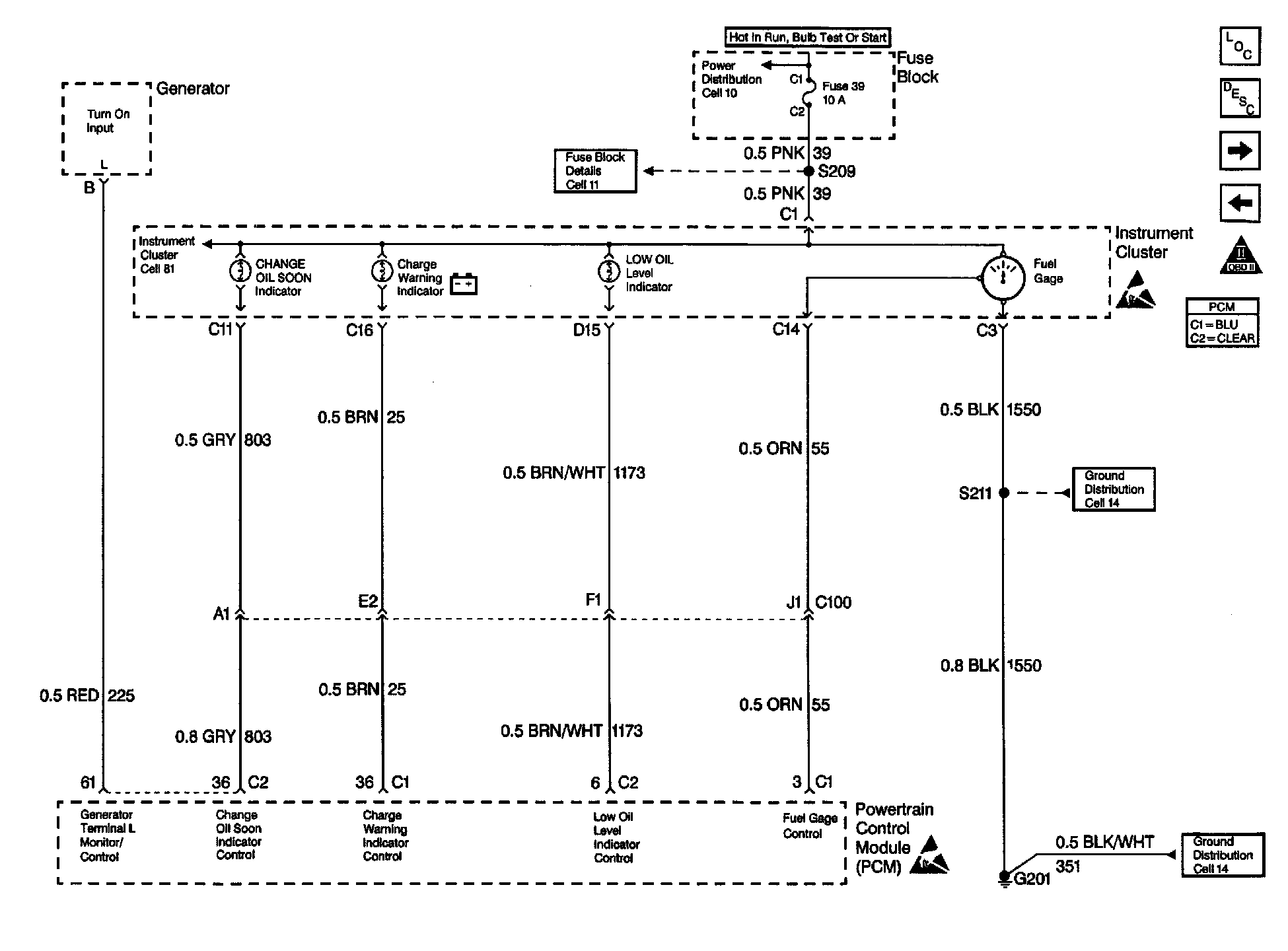

Engine Data Sensors - Indicator lamps

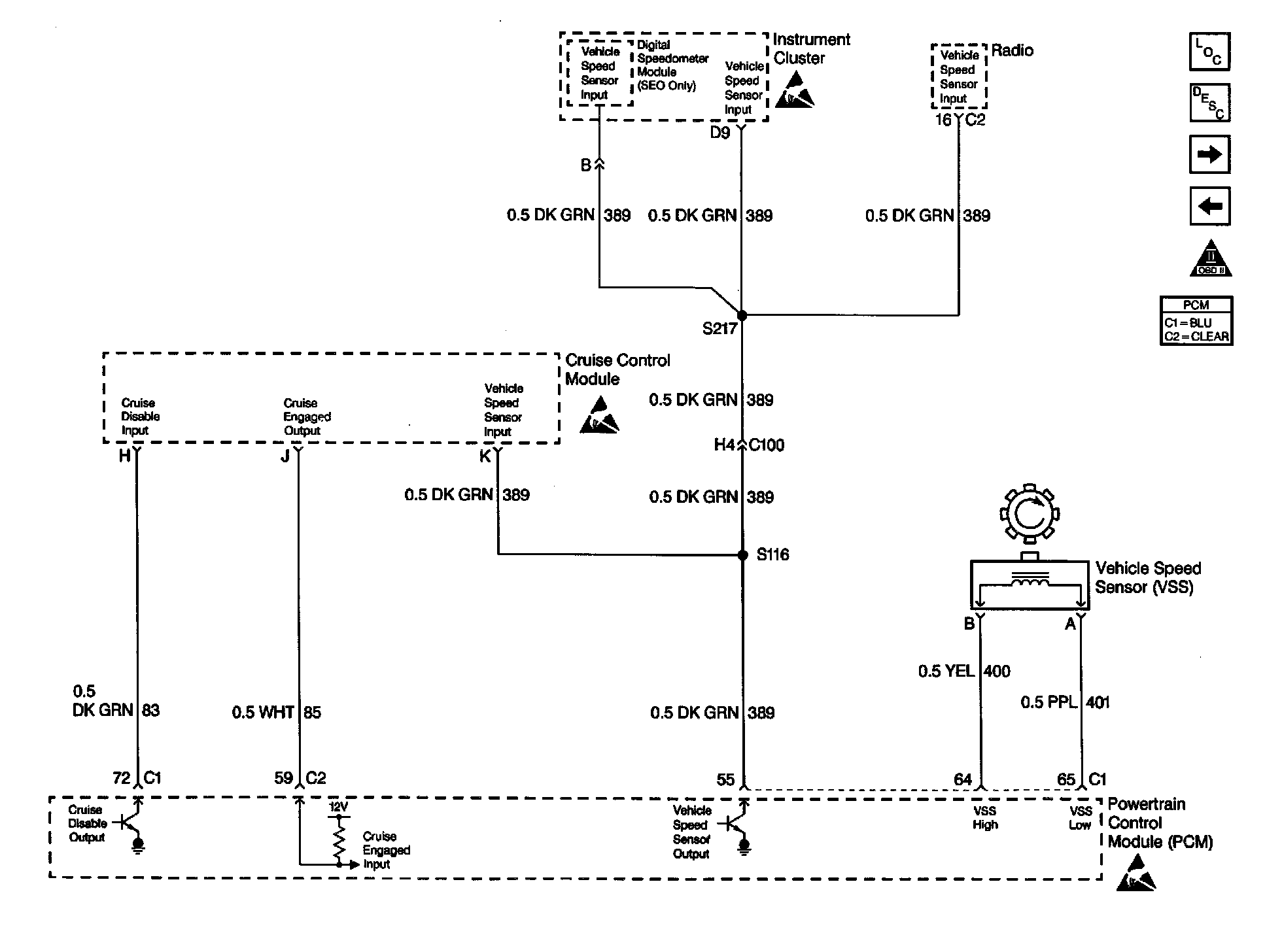

Engine Data Sensors - VSS, Cruise

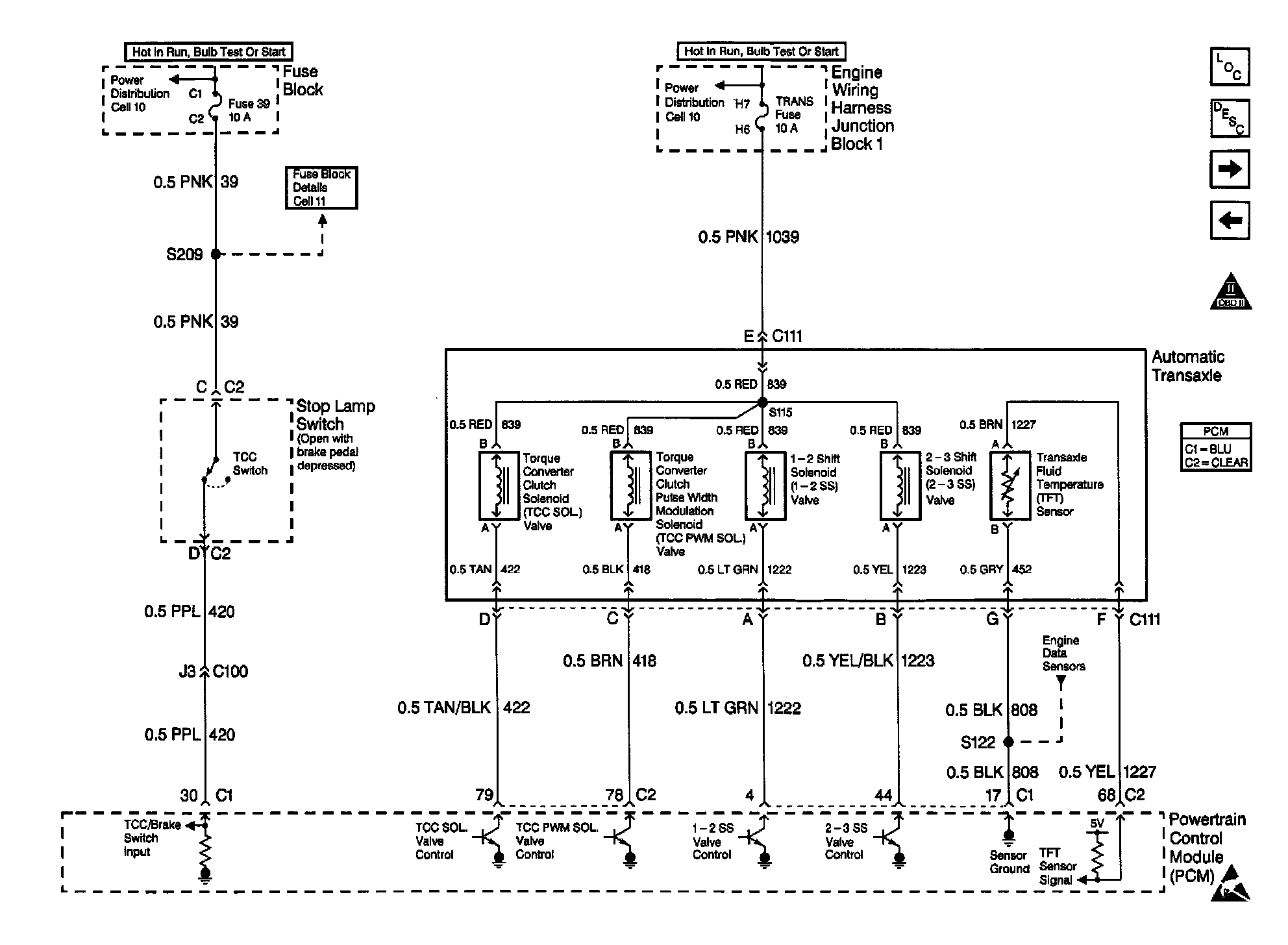

Engine Data Sensors - Automatic Transaxle TCC Switch

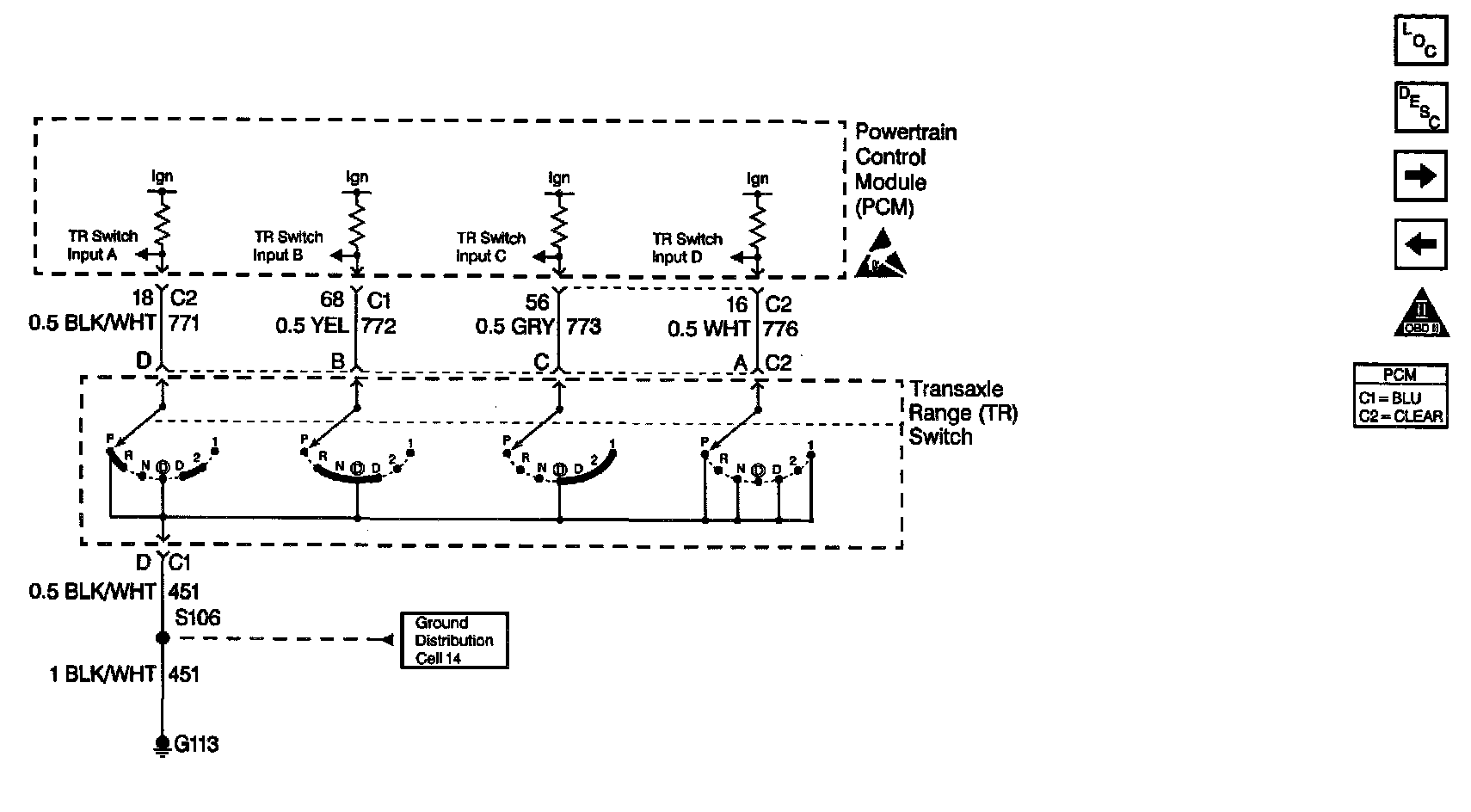

Engine Data Sensors - Transaxle Range Switch: PCM Inputs

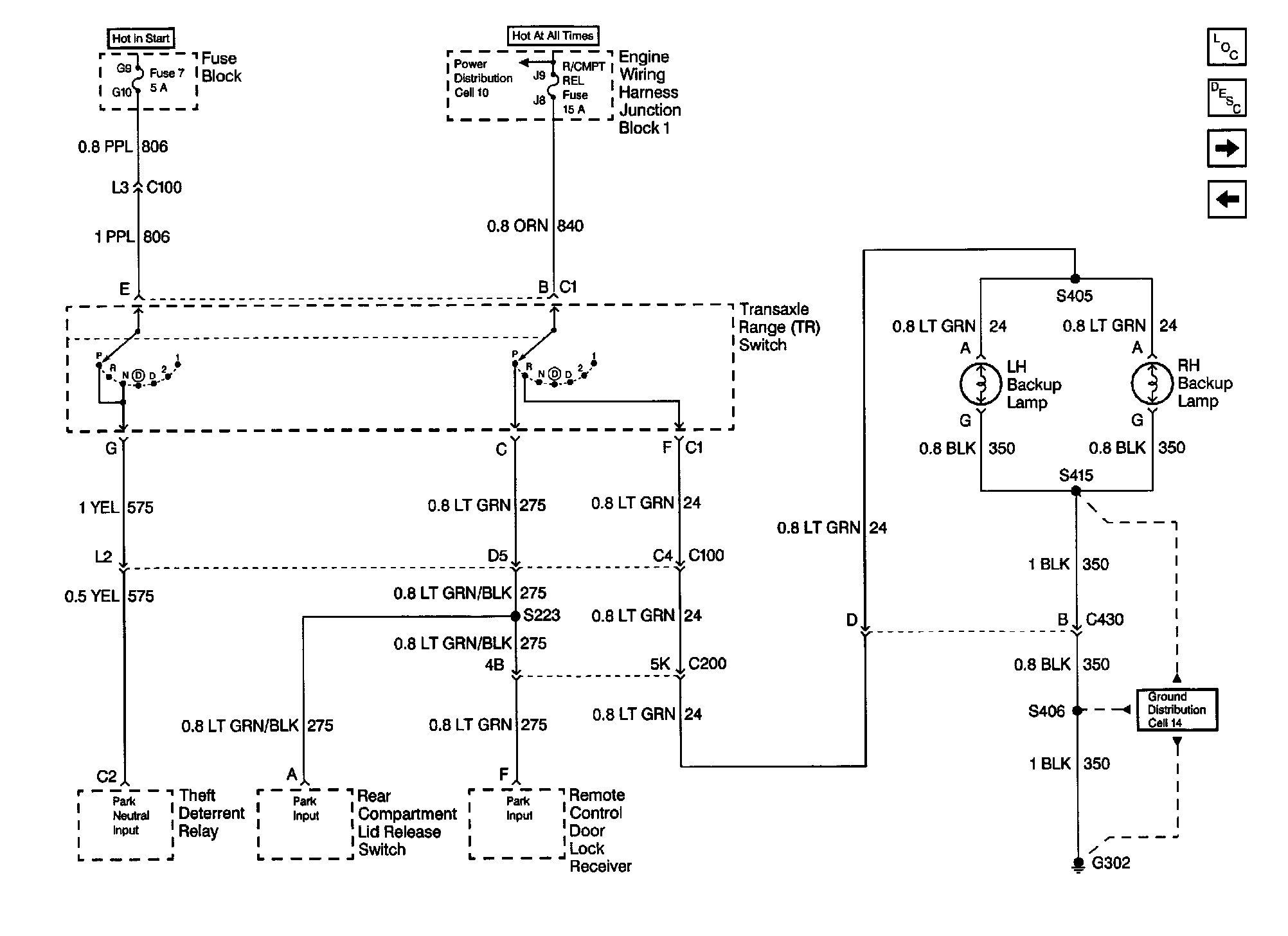

Engine Data Sensors - PCM, Backup Lamps and Theft Deterrent




Engine Data Sensors - A/C Compressor Controls

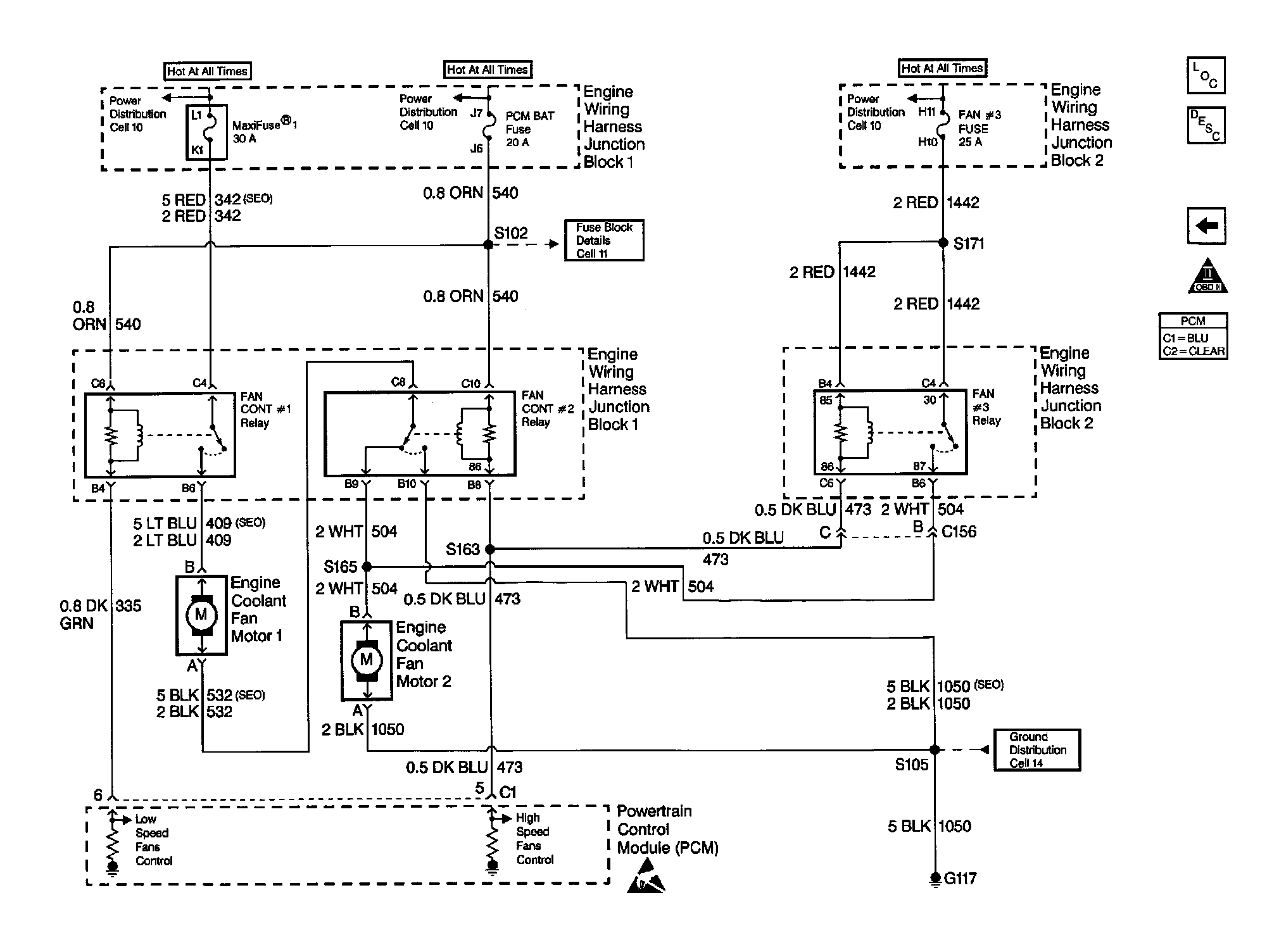

Engine Data Sensors - Cooling Fan Controls
