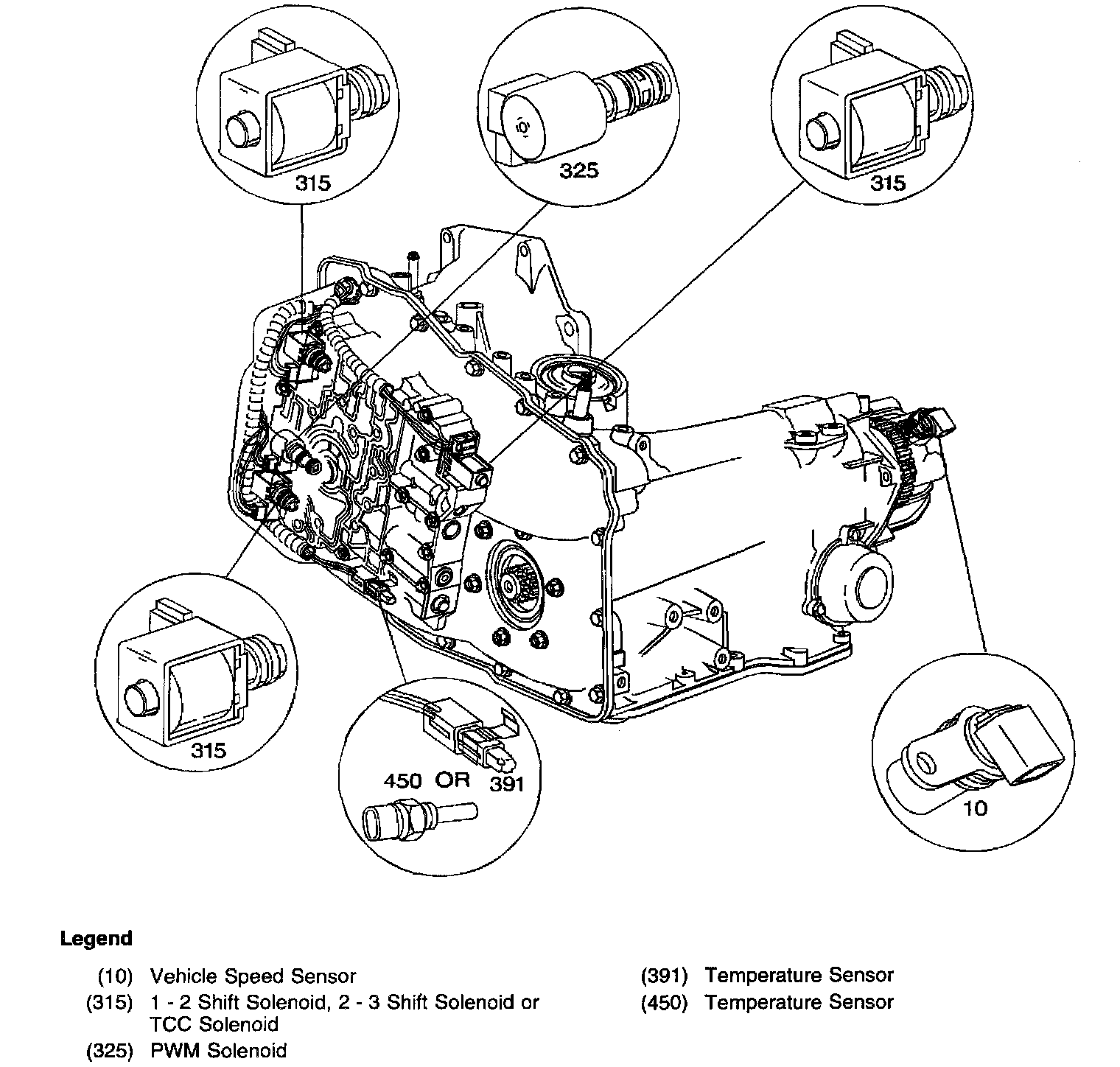

Electronic Component Locations

Electronic Component Locations:





Electronic Component Locations

There are several switches and sensors located in the transaxle that are input or output to the PCM. Refer to Automatic Transaxle for a complete description and diagnosis.
