Heater Hoses Replacement

REMOVAL PROCEDURE





TOOLS REQUIRED
J 38185 Hose Clamp Pliers

1. Drain the cooling system.

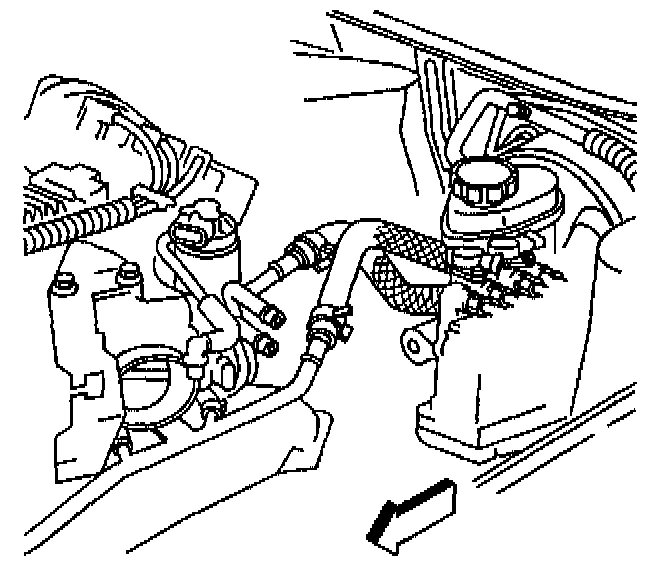

2. Use J 38185 in order to position aside the heater hose inlet and/or outlet clamp.
3. Disconnect the heater inlet hose and/or the outlet hose from the inlet and/or outlet pipe.




4. Use J 38185 in order to position aside the heater core inlet and/or outlet hose clamp.
5. Disconnect the heater inlet hose and/or the outlet hose from the heater core.
6. Remove the heater inlet hose and/or the outlet hose.

INSTALLATION PROCEDURE




1. Install the heater inlet hose and/or outlet hose.
2. Connect the heater inlet hose and/or the outlet hose to the heater core.

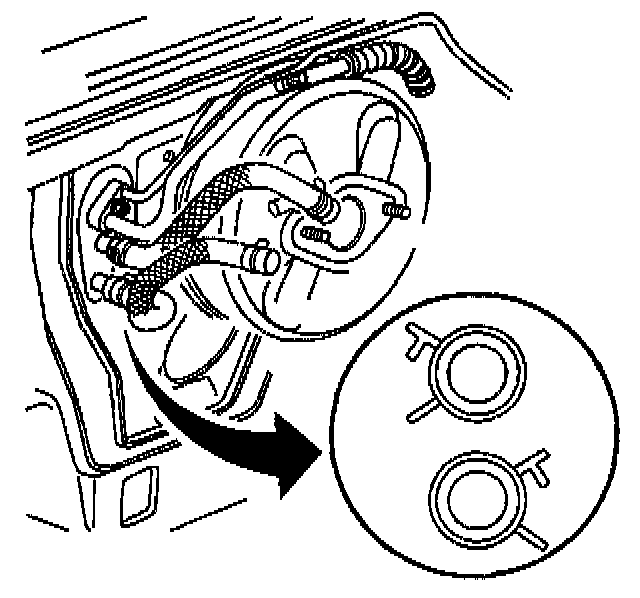

IMPORTANT: Position heater core hose clamps in the indicated location.

Use J 38185 in order to secure the heater core hose inlet and/or outlet clamp.




3. Connect the heater inlet hose and/or the outlet hose to the inlet and/or outlet pipe.
4. Use J 38185 in order to secure the heater hose inlet and/or outlet clamp.
5. Refill the cooling system.
